HD7000 Series Templates and Installation Instructions

  • Updated

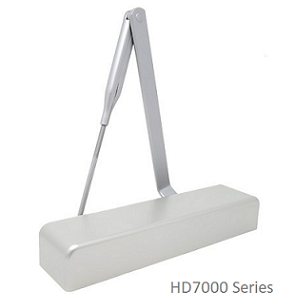

HD7000 Series Templates hd7000_white_bkgnd.PNG
Click on the Template ID or Document ID of the document you wish to view.



Parallel Arm Templates
Template    Description   Rev   Last Updated
T91520   HD7016 ARP Parallel Arm (Push Side Mount)
  Template/Drilling Instructions		   A   2020
T91819   HD7016 DS Door Saver Parallel Arm
  (Push Side Mount) with Standard Spacer Block
   Optional NFHD Bracket and BSHD Blade
  Blade Stop Block
  Template/Drilling Instructions		   A   2020
T91820

  HD7016 DS Door Saver Parallel Arm
  (Push Side Mount)   with Plates DP70,
  DPC80FC and Standard Spacer Block
  Template/Drilling Instructions

   A   2020
T91821   HD7016 DST Door Saver (Parallel Arm Mount)
  for Use with Standard Spacer Block/Optional
  NFHD Bracket
  Template/Drilling Instructions		   A   2020
T91822   HD7016 DST Door Saver (Parallel Arm Mount)
  with Drop Plate DP70
  for Use with Standard Spacer Block/Optional
  NFHD Bracket
  Template/Drilling Instructions		   A   2020
T91823   HD7016 SDS Spring Door Saver
  (Parallel Arm Mount)
  for Use with Standard Standard Spacer
  Block/NFHD Bracket
  Templates/Drilling Instructions		   A   2020
T91825   HD7016 SDST Spring Door Saver
  (Parallel Arm Mount)
  for Use with Standard Spacer Block/Standard
  NFHD Bracket
  Template/Drilling Instructions 		   A   2020
T91830   HD7016 SDST Spring Door Daver
  (Parallel Arm Mount)   with Drop Plate DP70
  for use with Standard Spacer Block/Standard
  NFHD Bracket
  Template/Drilling Instructions		   A   2020
T91836   HD7016 A08P Parallel Arm (Push Side Mount)
  Template/Drilling Instructions		   A   2020
T91837    HD7016 A08P, PRP Parallel Arm (Push Side Mount)
  with Plates DP70, DP70FC
  Template/Drilling Instruction		   A   2020
T91838   HD7016 SPA, SPAT Super Parallel Arm
  (Push Side Mount)   with Standard Spacer Block
  Optional NFHD Bracket
  and BSHD Blade Stop Block
  Template/Drilling Instructions		   A   2020
T91839   HD7016 SPA, SPAT Super Parallel Arm
  (Push Side Mount) with Plates DP70, DP70FC
  and Standard Spacer Block
  Optional NFHD Bracket
  and BSHD Blade Stop Spacer block
  Template/Drilling Instructions		   A   2020
T91840   HD7016 SPA, SPAT, xFTHD Super Parallel Arm
  Flush Mount
  (Push Side Mount) Template/Drilling Instructions		   A   2020
T91841   HD7016 SPA, SPAT, xFTHD
  Super Parallel Arm Transom (Push Side Mount)
  with Plates DP70, DP70FC
  Templates/Drilling Instructions		   A   2020
T92183   HD7016 FH x PFT
  Parallel Arm Flush Transon (Push Side Mount)
  Template/Drilling Instructions		   A   2020
T92347   HD7016 AFP x MJ Parallel Arm Installation
  [Push Side Mount]
  Drilling Instructions		   A   2022
T92348   HD7016 AFP x MJ Parallel Arm Installation
  [Push Side Mount] with Plates DP70, DP70FC
  Drilling Instructions 		  A   2022
T92355   HD7016 ARNPP [NHO] Parallel Arm Installation
  [Push Side Mount]
  Drilling Instructions 		  A   2022
T92356   HD7016 ARNPP [NHO] Parallel Arm Installation
  [Push Side Mount] with Plates DP70, DP70FC
  Drilling Instructions 		  A   2022
T92357   HD7016 FHP Parallel Arm Installation
  [Push Side Mount] Drilling Instructions		   A   2022
T92358   HD7016 FHP Parallel Arm Installation
  [Push Side Mount] with Plates DP70, DP70FC
  Drilling Instructions		   A   2022
T92359   HD7016 ARP x MJ Parallel Arm Installation
  [Push Side Mount] Drilling Instructions		   A   2022
T92360   HD7016 AFP, ARP x MJ Parallel Arm Installation
  [Push Side Mount] with Plates DP70, DP70FC
  Drilling Instructions		   A   2022
T92361   HD7016 SPA, SPAT Super Parallel Arm Installation
  [Push Side Mount] with Standard Spacer Block
  Optional NFHD Bracket
  and BSHD Blade Stop Spacer Block
  Drilling Instructions		   A   2022
T92362   HD7016 SPA, SPAT Super Parallel Arm Installation
  [Push Side Mount] with Plates DP70, DP70FC
  and Standard Spacer Block Optional NFHD Bracket
  and BSHD Blade Stop Spacer Block
  Drilling Instructions		    A    2022
T92368   HD7016 ARP x MJ Parallel Arm Installation
  [Push Side Mount]
  Drilling Instructions 		   A    2022
T92369   HD7016 AFP, ARP x MJ Parallel Arm Installation
  [Push Side Mount] with Plates DP70, DP70FC
  Drilling Instructions 		   A    2022
T92259   HD7016 AR x PD Parallel Arm Installation
  (Push Side Mount) Drilling Instructions 		   A    2022
T92260   HD7016 ARP x PD Parallel Arm Installation
  (Push Side Mount) with Plates DP70 and DP70FC
  Drilling Instructions 		   A    2022
T92261   HD7016 AR x PFT (NHO)
  Parallel Arm Flush Transom Installation
  (Push Side Mount) Drilling Instructions 		   A    2022
T92262   HD7016 AR x PFT (NHO) Parallel Arm
  Flush Transom Installation (Push Side Mount)
  with Plates DP70, DP70FC Drilling Instructions 		   A    2022
T92263   HD7016 FH x PFT Parallel Arm Flush
  Transom Installation (Push Side Mount)
  with Plates DP70, DP70FC Drilling Instructions 		   A    2022
T92268   HD7016 PHP Parallel Arm Installation
  (Push Side Mount) (Plunger Hold Open Arm)
  Drilling Instructions 		   A    2022
T92269   HD7016 PHP Parallel Arm Installation
  (Push Side Mount) Drilling Instructions 		   A    2022

Regular Arm Templates
Template   Description   Rev   Last Updated
T91831   HD7016 A08, AR Regular (Pull Side Mount)
  Template/Drilling Instructions		   A   2020
T91832   HD7016 A08, AR Regular (Pull Side Mount)
  with Plates BP70, BP70FC
  Template/Drilling Instructions		   A   2020
T92184   HD7016 ISH Regular (Pull Side Mount)
  Integra Cushion Arm
  Templates/Drilling Instructions		   A   2020
T92185   HD7016 IS Regular (Pull Side Mount)
  Integra Cushion Arm
  Templates/Drilling Instructions		   B   2022
T92203   HD7016 FH Regular (Pull Side Mount)
  Template/Drilling Instructions		   A   2020
T92342   HD7016 AF or AR [NHO] Regular Installation
  [Pull Side Mount] with Plates BP70, BP70FC
  Drilling Instructions		   A   2022
T92343   HD7016 AFJ or ARJ [NHO] Top Jamb Installation
  [Push Side Mount] with Plates BP70, BP70FC
  Drilling Instructions 		  A   2022
T92345   HD7016 AR x MJ Regular Installation
  [Pull Side Mount]
  Drilling Instructions 		  A   2022
T92346   HD7016 AR, AF x MJ Regular Installation
  [Pull Side Mount] with Plates BP70, BP70FC
  Drilling Instructions 		  A   2022
T92349   HD7016 AF x MJ Regular Installation
  [Pull Side Mount]
  Drilling Instructions		   A   2022
T92350   HD7016 AF x MJ Regular Installation
  [Pull Side Mount] with Plates BP70, BP70FC
  Drilling Instructions 		  A   2022
T92351   HD7016 IS Regular Installation
  [Pull Side Mount] Dead Stop Arm
  with Plates BP70, BP70FC
  Drilling Instructions		   A   2022
T92363   HD7016 ARNP [NHO] Regular Installation
  [Pull Side Mount] with Plates BP70, BP70FC
  Drilling Instructions		   A   2022
T92364   HD7016 ARNP (NHO) Regular Installation
  [Pull Side Mount]
  Drilling Instructions		   A   2022
T92264   HD7016 FH Regular Installation
  (Pull Side Mount)
  with Plates BP70, BP70FC Drilling Instructions 		  A    2022
T92270   HD7016 PH Regular Installation
  (Pull Side Mount) (Plunger Hold Open Arm)
  Drilling Instructions 		  A   2022
T92271   HD7016 PH Regular Installation
  (Pull Side Mount)(Plunger Hold Open Arm)
  with Plates BP70, BP70FC Drilling Instructions 		  A   2022
T92285   HD7016 ISH Regular Installation
  (Pull Side Mount) (Integra Cushion Arm)
  Drilling Instructions 		  A   2022
T92286   HD7016 ISH Regular Installation
  (Pull Side Mount) with Plates BP70, BP70FC
  (Integra Cushion Arm) Drilling Instructions 		  A   2022
T92307   HD7016 SIS (Spring Integra Stop)
  Regular Installation (Pull Side Mount)
  Drilling Instructions 		  A   2022
T92308   HD7016 SIS Regular Installation
  (Pull Side Mount) with Back Plates BP70, BP70FC
  (Spring Integra Cushion Arm)
  Drilling Instructions 		  A   2022
T92309   HD7016 SISH (Spring Integra Stop)
  Regular Installation Hold Open
  (Pull Side Mount) Drilling Instructions 		  A   2022
T92310   HD7016 SISH Regular Installation
  (Pull Side Mount) with Back Plates BP70, BP70FC
  (Spring Integra Cushion Arm)
  Drilling Instructions 		  A   2022

Top Jamb Templates
Template   Description   Rev   Last Updated
T91833   HD7016 A08, ARJ Top Jamb (Push Side Mount)
  Template/Drilling Instructions		   A   2020
T91834   HD7016 A088J, ARJ Top Jamb (Push Side Mount)
  with Plates BP70, BP70FC
  Template/Drilling Instructions		   A   2020
T91835   HD7016 A08J, ARJ Top Jamb (Push Side Mount)
  with Plate DP70
  Template/Drilling Instructions 		   A   2020
T92635   HD7016 ARNPJ [NHO] Top Jamb Installation
  [Push Side Mount] with Plates BP70, BP70FC
  Drilling Instructions 		  A   2022
T92366   HD7016 ARNPJ [NHO] Top Jamb Installation
  [Push Side Mount] with Plate DP70
  Drilling Instructions 		  A   2022
T92258   HD7016 AFJ, ARJ x AB70 Top Jamb Installation
  (Push Side Mount) Drilling Instructions 		  A   2022
T92265   HD7016 PHJ Top Jamb Installation
  (Push Side Mount) Plunger Hold Open Arm
  Drilling Instructions 		  A   2022
T92266   HD7016 PHJ Top Jamb Installation
  (Push Side Mount)(Plunger Hold Open Arm)
  with Plates BP70, BP70FC Drilling Instructions 		  A   2022
T92267   HD7016 PHJ Top Jamb Installation
  (Push Side Mount) Plunger Hold Open Arm
  with Plate DP70 Drilling Instructions 		  A   2022
T92272   HD7016 ISJH Top Jamb Installation
  (Push Side Mount) with Drop Plate DP70
  (Integra Cushion Arm) Drilling Instructions 		  A   2022
T92273   HD7016 SISJH (Spring Integra Cushion Arm)
  Top Jamb Installation (Push Side Mount)
  with Back Plates BP70, BP70FC
  Drilling Instructions 		  A   2022
T92274   Door Closer Models: HD7016 ISJ
  Top Jamb Installation (Push Side Mount)
  (Integra Cushion Arm) Drilling Instructions 		  A   2022
T92275   Door Closer Models: HD7016 ISJ
  Top Jamb Installation (Push Side Mount)
  with Back Plates BP70, BP70FC
  (Integra Cushion Arm) Drilling Instructions 		  A   2022
T92276   HD7016 FHJ Top Jamb Installation
  (Push Side Mount) Drilling Instructions 		  A   2022
T92277   HD7016 FHJ Top Jamb Installation
  (Push Side Mount) with Plate DP70
  Drilling Instructions 		  A   2022
T92278   HD7016 FHJ Top Jamb Installation
  (Push Side Mount) with Plates BP70
  and BP70FC Drilling Instructions 		  A   2022
T92280   HD7016 ISJ Top Jamb Installation
  (Push Side Mount) with Drop Plate DP70
  (Integra Cushion Arm) Drilling Instructions 		  A   2022
T92284   HD7016 SISJH (Spring Integra Cushion Arm)
  Top Jamb Installation (Push Side Mount)
  with Drop Plate DP70 Drilling Instructions 		  A   2022
T92287   HD7016 ISJH Top Jamb Installation
  (Push Side Mount) (Integra Cushion Arm)
  Drilling Instructions 		  A   2022
T92288   HD7016 ISJH Top Jamb Installation
  (Push Side Mount) with Back Plates BP70, BP70FC
  (Integra Cushion Arm)
  Drilling Instructions 		  A   2022
T92310   HD7000 SISJ (Spring Integra Stop)
  Top Jamb Installation (Push Side Mount)
  Drilling Instructions 		  A   2022
T92312   HD7000 SISJ (Spring Integra Stop)
  Top Jamb Installation (Push Side Mount)
  Drilling Instructions 		  A   2022
T92311   HD7016 SISJ (Spring Integra Cushion Arm)
  Top Jamb Installation (Push Side Mount)
  with Drop Plate DP70 Drilling Instructions 		  A   2022
T92830   HD7000 SISJH (Spring Integra Stop)
  Top Jamb Installation Hold Open
  (Push Side Mount) Drilling Instructions 		  A   2022

Door Saver Templates
T92352   HD7016 IS DS, DST x FTHD Door Saver Arm
  Flush Installation [Push Side Mount]
  Drilling Instructions 		  A   2022
T92353   HD7016 DS, DST x FTHD Door Saver Arm
  Flush Transom Installation [Push Side Mount]
  with Plates DP70, DP70FC
  Drilling Instructions 		  A   2022

Track Arm Templates
T92221   HD7016 T, TH Track Installation
  (Pull Side Mount)
  Drilling Instructions 		  A   2022
T92222   HD7016 T, TH Track Installation
  (Pull Side Mount)
  with Plates BP70T and BP70TFC
  Drilling Instructions 		  A   2022
T92223   HD7016 JT, JTH Track Installation
  (Pull Side Mount) Drilling Instructions 		  A   2022
T92224   HD7016 JT, JTH Track Installation
  (Pull Side Mount)
  with Plates BP70 and BP70FC
  Drilling Instructions 		  A   2022
T92225   HD7016 FT, FTH Flush Transom Track Installation
  (Push Side Mount) with Plates BP70T, BP70TFC
  Drilling Instructions 		  A   2022
T92279   HD7016 TDE, TDEH Double Egress
  Track Installation (Pull Side Mount)
  Drilling Instructions 		  A   2022
T92281   HD7016 TDE, TDEH Double Egress
  Track Installation (Pull Side Mount)
  with Plates BP70, BP70FC
  Drilling Instructions 		  A   2022
T92283   HD7016 PT, PTH Parallel Track Installation
 (Push Side Mount) Drilling Instructions 		  A   2022
T92282   HD7016 PT, PTH Parallel Track Installation
  (Push Side Mount) with Plates DP70, DP70FC
  Drilling Instructions 		  A   2022

Installation Instructions
Document ID   Description   Rev   Last Updated
T91522   HD7016 AR/ARJ/ARP Round Arm for Regular, Top Jamp, Parallel
  Installation Instructions		    A   2020
T91814   HD7016 FH/FHJ/FHP Regular, Top Jamb, Parallel Mount
  Installation Instructions		    A   2020
T91815   HD7016 A08/A08J/A08P Round Arm Secure for Regular, Top Jamb,    and Parallel Mounts with No Hold Open
  Installation Instructions		    A   2020
T91816   HD7016 IS/ISH/ISJ/ISJH Integra Stop Arm for Regular,
  Top Jamb, with Hold Open (ISH,ISJH)
  Installation Instructions		   A   2020
T91817   HD7016 DS/DST/SDS/SDST
  Door Saver and Spring Door Saver Arm
  with Thumb Turn and Key Turn Hold Open
  Installation Instructions		   A   2020
T91818   HD7016 SPA/SPAT
  Super Parallel Arm Mount and Drop Plate (DP70)
  Installation Instructions		   A   2020
T92212   HD7000 SIS, SISJ, SISH, SISJH
  Pull Side Stop SIS Arm Regular Mount
  Push Side Stop SISJ Arm Top Jamb Mount
  Pull Side Stop SISH Arm Regular Mount, with Hold Open
  Push Side Stop SISJH Arm Top Jamb Mount, with Hold Open
  Installation Instructions
   A   2022
T92213   HD7000 T/TH, JT/JTH, FT/FTH
  Pull Side Mount (Closer on Frame, Track on Door) T/TH
  Pull Side Mount (Closer on Door, Track on Frame) JT/JTH
  Push Side Mount (Closer on Transom, Track on Door) FT/FTH
  Installation Instructions
   A   2022
T92214   HD7000 PH, PHJ, PHP Plunger Hold Open
  for Regular, Top Jamb and Parallel Mounts
  Installation Instructions		   A      2022
T92215   HD7000 TDE/TDEH Track Double Egress Installation
  Pull Side Mount (Closer on Door, Track on Frame)
  Installation Instructions 		  A   2022
T92216   HD7000 PT/PTH Track Installation Push Side Mount
  With Drop Plate (DP70)
  Installation Instructions 		  A   2022
T94696   Installation Instructions BP60/70/70FC DP60/70/70FC Plates  A  2023
T94700

  HD7016 AF/AR86P x PFT - Flat Arm/Round Arm for
  Parallel Mount with Parallel Flush Transom Bracket and
  Drop Plate (DP70)

  A  2023
T94701

  HD7000 AF/AR70 x MJ HD7000 AF/AR70P x MJ x
  Flat Arm/Round Arm for Regular and Parallel Mounts with
  Mortised Jamb Bracket and Optional Backplate (BP70)

  A  2023
T94702

  HD7016 ARNP/ARNPJ/ARNPP Round arm for
  Regular, Top Jamb, Parallel Mounts with Narrow Profiles

  A  2023
T94703

  HD7000 SPA/SPAT Super Parallel Arm Mount with
  Fush Transom Bracket and Drop Plate (DP70)

  A  2023
T94704

  HD7016 AF/AFJ/AFP Flat Arm for Regular, Top Jamb,
  and Parallel Mounts No Hold Open

  A  2023
T94705

  HD7000 AF/AR70P x PD Flat arm/round arm for
  Parallel Mount with Parallel Drop Bracket and
  Drop Plate (DP70)

  A  2023

Related articles
