5 Knuckle FBB Swing Clear Hinge Templates

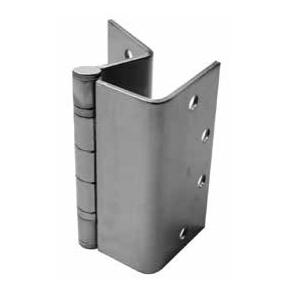

5 Knuckle Plain Bearing “Swing Clear” Full Mortise - Standard Weight
Available Models and Materials (Standard Weight)
| F248 – (ANSI A8123) Steel – polished and plated or phosphated and prime coated for painting |
Templates (Standard Weight)
Templates are arranged in order by size, smallest to largest.
| Hinge | Size | Template | Revision |
Last Updated |
| F248 | 3 1/2" | T35-05 Full Mortise Swing-Clear Butt Hinges 3 1/2" | B | 2021 |
| F248 | 4" | T40-05 Full Mortise Swing Clear Butt Hinge 4" | B | 2021 |

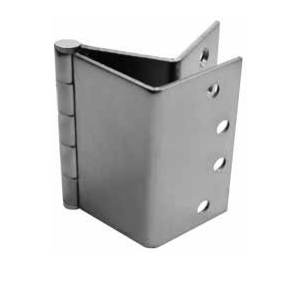

5 Knuckle FBB "Swing Clear" Hinges - Standard Weight
Available Models and Materials (Standard Weight)
|
Steel – polished and plated or phosphated and prime coated for painting
Stainless Steel – highly polished or satin finish
|
 |
Templates (Standard Weight)
Templates are arranged in order by size, smallest to largest.
| Hinge | Size | Template | Revision |
Last Update |
| FBB248 STSFBB248 |
4 1/2" | T45-30 Full Mortise Swing-Clear Butt Hinges 4.5 | B | 2021 |
| FBB258 STSFBB258 |
4 1/2" | T45-35 Full Mortise Swing-Clear Butt Hinges for Doors with Beveled Edge Hinge Stile 4 1/2" | B | 2021 |
5 Knuckle FBB "Swing Clear" Hinges - Heavy Weight
Available Models and Materials (Heavy Weight)
|
Steel – polished and plated or phosphated and prime coated for painting
|
Stainless Steel – highly polished or satin finish
|
Templates (Heavy Weight)
Templates are arranged in order by size, smallest to largest.
| Hinge | Size | Template | Revision | Last Update |
| FBB268 STSFBB268 |
4 1/2" | T45-31 Full Mortise Swing-Clear Butt Hinges 4.5 | B | 2021 |
| FBB268 STSFBB268 |
5" | T50-05 Full Mortise Swing-Clear Butt Hinges 5 | B | 2021 |
| FBB278 STSFBB278 |
4 1/2" | T45-36 Full Mortise Swing-Clear Butt Hinges for Doors with Beveled Edge Hinge Stile 4.5 | B | 2021 |
| FBB278 STSFBB278 |
5" | T50-12 Full Mortise Swing-Clear Butt Hinges for Doors with Beveled Edge Hinge Stile 5 | B | 2021 |
| FBB269 STSFBB269 |
5" | T50-85 Half Surface Swing-Clear Hinges 5 | B | 2021 |
| FBB264 STSFBB264 |
5" | T50-45 Half Mortise Swing-Clear Hinges for Doors with Square Hinge Stiles 5 | B | 2021 |
| FBB274 STSFBB274 |
5" | T50-47 Half Mortise Swing-Clear Hinges for Doors with Beveled Hinge Stiles 5 | B | 2021 |
| FBB266 STSFBB266 |
5" | T50-65 Full Surface Swing-Clear Hinge 5 | B | 2021 |
Maintenance – 5 Knuckle FBB Swing Clear Hinges
Keep hinge surfaces clean.
Clean using a soft, damp cloth only.
Do not use chemicals that could damage the protective lacquer coating.
As required, apply Shell Darina #2, or an equivalent grease, to the non-load-bearing center hinge knuckle and pin.
Bearings do not require lubrication, as they contain polytetrafluoroethylene (PTFE).
Lubrication Procedure
Remove the hinge pins.
Wipe or dip the pins in grease.
Reinsert the pins; the grease will work into the load-bearing surfaces.
Wipe away any excess grease and dirt from the hinge.
* Lubrication applies to hinge pins only; bearings are self-lubricating.
