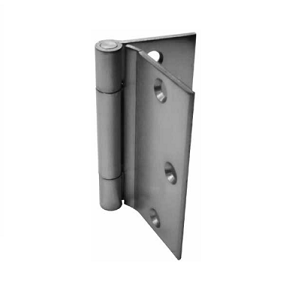

3 Knuckle CB Half Surface Hinges - Standard Weight
Templates are arranged in order by size, smallest to largest. Click on the blue link of the template you wish to download or view. For cut sheet information on the 3 Knuckle Half Mortise Hinges, click here the website.
For additional information and FAQ's on the CB concealed bearing hinges, please click here.
Maintenance of CB 3 knuckle concealed bearing line of hinges
Hinge surface should be kept clean. Use a soft damp cloth free of any chemicals that would harm the protective lacquer coating.
|
CB1910R – (ANSI A8412) Steel – polished and plated or phosphated and prime coated for painting CB1970R – (ANSI A2412) Brass or bronze – polished and plated or painted CB1970R (32) – (ANSI A5412) Stainless steel – highly polished CB1970R (32D) – (ANSI A5412) Stainless steel – satin finish |
 |
| Hinge | Size | Template | Rev | Last Updated |
| CB1910R CB1970R |
4 1/2" | T45-80 Half Surface Hinges 4.5 | B | 2021 |
| *CSCB1910 | 4 1/2" | T45-83 Half Surface Template Hinges With Concealed Switch | B | 2021 |
| CB1910R CB1970R |
5" | T50-80 Half Surface Hinges 5 | B | 2021 |
| *CSCB1910 *CSCB1910R |
5" | T50-83 Half Surface Template Hinges with Concealed Switch | B | 2021 |
3 Knuckle CB Half Surface Hinges - Heavy Weight
|
CB1911R – (ANSI A8411) Steel – polished and plated or phosphated and prime coated for painting CB1971R – (ANSI A2411) Brass or bronze – polished and plated or painted CB1971R (32) – (ANSI A5411) Stainless steel – highly polished CB1971R (32D) – (ANSI A5411) Stainless steel – satin finish |
 |
| Hinge | Size | Template | Rev | Last Updated |
| CB1911R CB1971R |
4 1/2" | T45-80 Half Surface Hinges 4.5 | B | 2021 |
| CB1911R CB1971R |
5" | T50-80 Half Surface Hinges 5 | B | 2021 |
| *CSCB1911 *CSCB1911R *CSCB1977R |
5" | T50-83 Half Surface Template Hinges with Concealed Switch | B | 2021 |
| CB1911R CB1971R |
6 " Half surface hinges for doors > 1 3/4" thick | T60-80 Half Surface Hinges for Doors 1 and three fourth Thick and Over 6 | B | 2021 |
* No longer available. Template available for archive purposes.
