5 Knuckle CB Full Surface Hinges

  • Updated

5 Knuckle CB Full Surface Hinges Templates

5 Knuckle CB Full Surface Hinges - Standard Weight

Available Models and Materials (Standard Weight):

  • CB171 (ANSI A8312) Steel – polished and plated or phosphated and prime coated for painting
  • CB110 (ANSI A2312) Brass or bronze – polished and plated or painted
  • CB110 (32) (ANSI A5312) Stainless steel – highly polished
  • CB110 (32D) (ANSI A5312) Stainless steel – satin finish

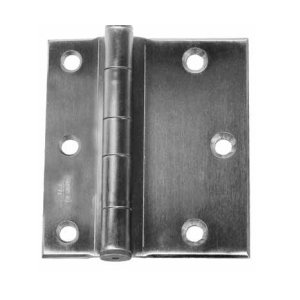

 A 5-knuckle full surface metal door hinge standard weight with two rectangular plates connected by a central cylindrical pin. The left plate has three screw holes arranged vertically, and the right plate has three screw holes arranged in two rows. The hinge has a brushed metallic finish.

Templates (Standard Weight)

Templates are arranged in order by size, smallest to largest.

Hinge Size   Template  Revision  Last
 Updated
CB171
HTCB171
CB110
HTCB110		 4 1/2" T45-60 Full Surface Hinge for Mineral Core Doors with Channel Iron Jambs 4.5  B  2021
CB171
HTCB171
CB110
HTCB110		 5" T50-60 Full Surface Hinge for Mineral Core Doors with Channel Iron Jambs 5  B  2021



5 Knuckle CB Full Surface Hinges - Heavy Weight

Available Models and Materials (Heavy Weight):

  • CB169 (ANSI A8311) Steel – polished and plated or phosphated and prime coated for painting
  • CB109 (ANSI A2311) Brass or bronze – polished and plated or painted
  • CB109 (32) (ANSI A5311) Stainless steel – highly polished
  • CB109 (32D) (ANSI A5311) Stainless steel – satin finish
 A 5-knuckle full surface metal door hinge heavy weight with two rectangular plates connected by a central cylindrical pin. The left plate has three screw holes arranged vertically, and the right plate has three screw holes arranged in two rows. The hinge has a brushed metallic finish.

Templates (Heavy Weight)

Templates are arranged in order by size, smallest to largest.

Hinge Size Template  Revision  Last
 Updated
CB169
HTCB169
CB109
HTCB109		 4 1/2" T45-60 Full Surface Hinge for Mineral Core Doors with Channel Iron Jambs 4.5  B  2021
CB169
HTCB169
CB109
HTCB109		 5" T50-60 Full Surface Hinge for Mineral Core Doors with Channel Iron Jambs 5  B  2021
CB169
HTCB169
CB109
HTCB109		 6 "  T60-60 Full Surface Hinges for Mineral Core Doors with Channel Iron Jambs 6  B  2021



Maintenance – 5 Knuckle CB Full Surface Hinges

  • Keep hinge surfaces clean.

  • Clean using a soft, damp cloth only.

  • Do not use chemicals that could damage the protective lacquer coating.

  • As required, apply Shell Darina #2, or an equivalent grease, to the non-load-bearing center hinge knuckle and pin.

  • Bearings do not require lubrication, as they contain polytetrafluoroethylene (PTFE).

Lubrication Procedure

  1. Remove the hinge pins.

  2. Wipe or dip the pins in grease.

  3. Reinsert the pins; the grease will work into the load-bearing surfaces.

  4. Wipe away any excess grease and dirt from the hinge.

* Lubrication applies to hinge pins only; bearings are self-lubricating.
