Reference Documents for Wiring PHI Electrical Hardware to SHELTER Repeaters

  • Updated

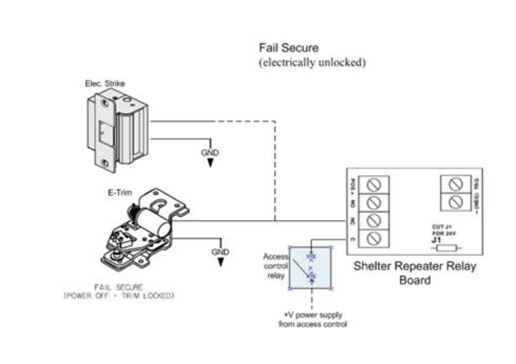

Fail Secure

A wiring reference diagram showing a fail-secure door locking setup where an electric strike and E-Trim are connected through an access control relay to a Shelter Repeater Relay Board, with power supply and ground connections illustrated for proper electrical operation.

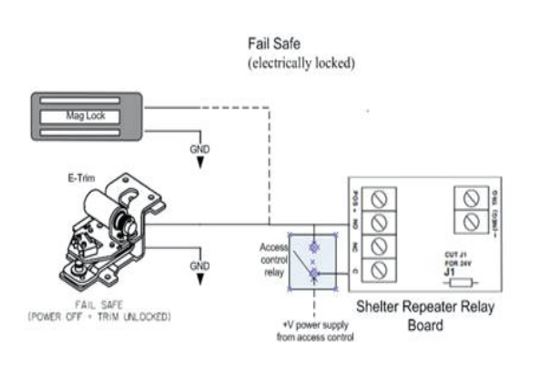

Fail Safe

A wiring reference diagram showing a fail-safe door locking system where a mag lock and E-Trim are connected through an access control relay to a Shelter Repeater Relay Board, illustrating the power and ground wiring for electrically locked operation.

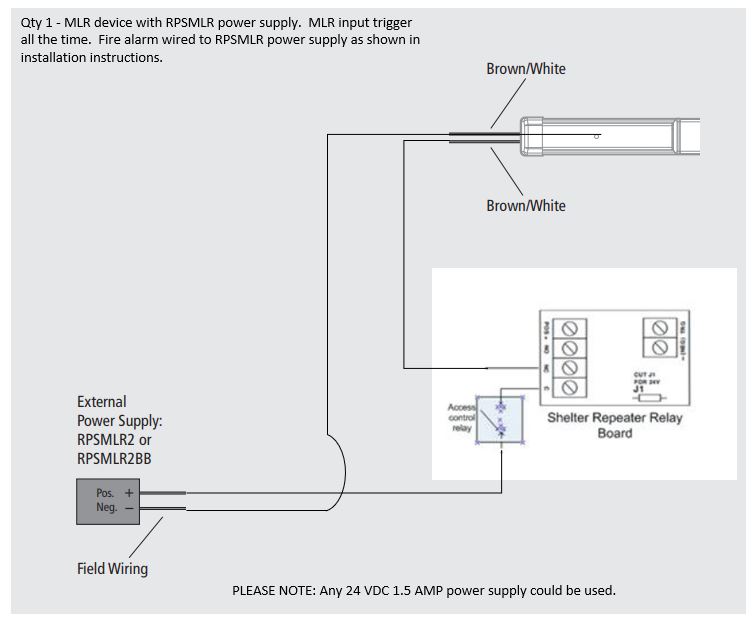

MLR device with RPSMLR Installation Instruction

A wiring diagram showing an MLR door device connected to an RPSMLR external power supply and a Shelter Repeater Relay Board, illustrating brown/white trigger wiring and access control relay integration for continuous input activation.

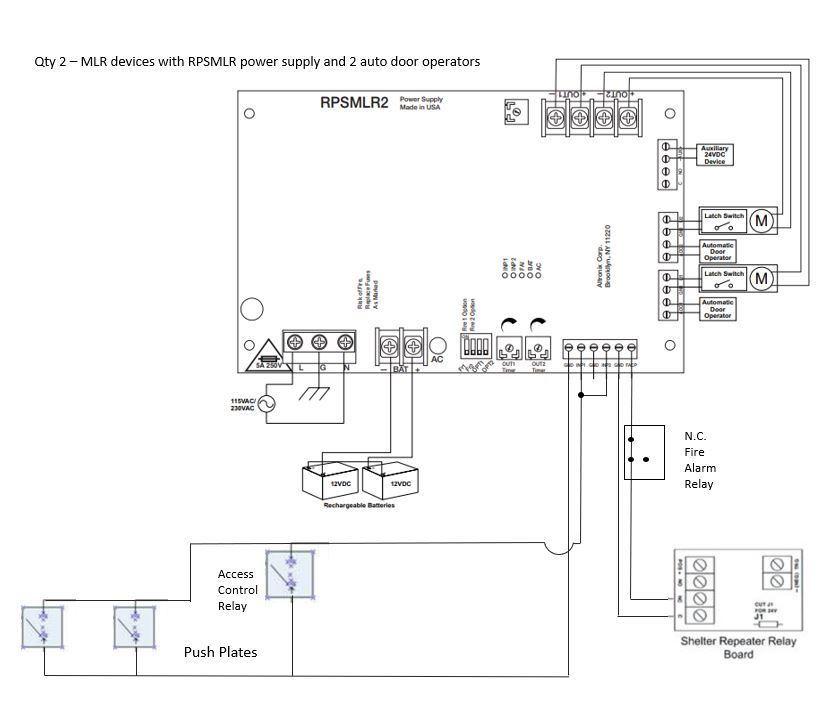

MLR devices with RPSMLR

Plan showing MLR devices with RPSMLR power supply and 2 auto door operators

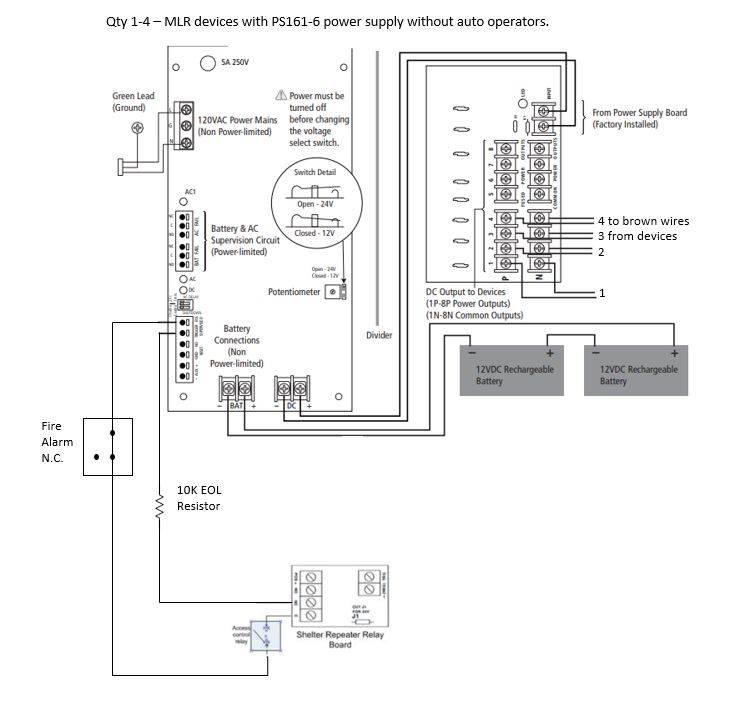

MLR devices with PS161-6

Plan showing MLR devices with PS161-6 power supply without auto operators

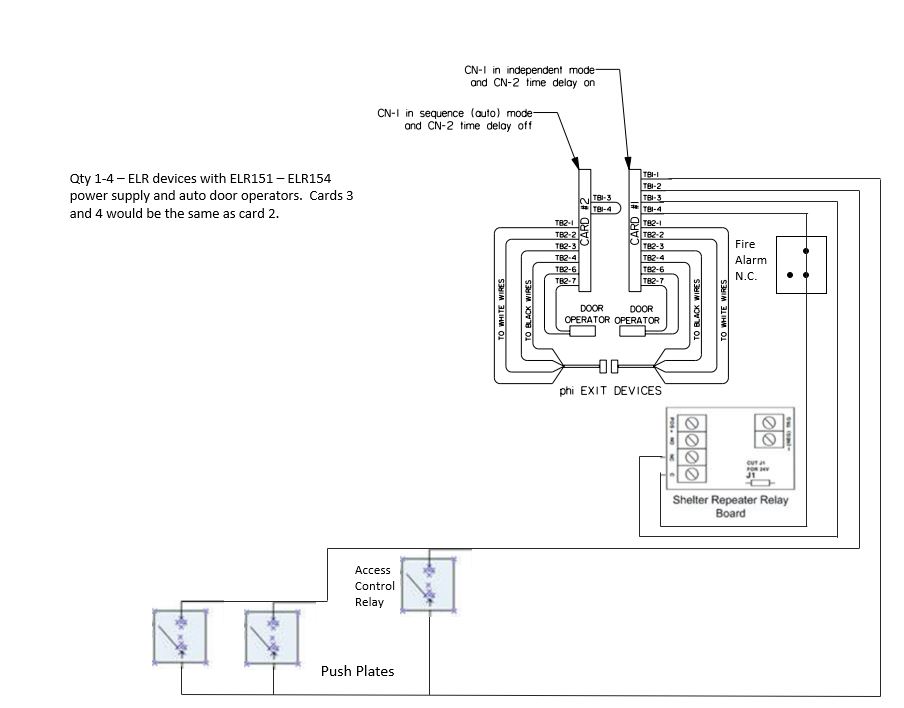

ELR devices with ELR151 -ELR154

Plan showing ELR devices with ELR151- ELR154 power supply and auto door operators. Cards 3 and 4 would be the same as card 2.
