QDB 200 SERIES AUXILIARY DEADBOLTS

 QDB 200

QDB 200 SERIES DRILLING INSTRUCTION AND TEMPLATE

Click on the blue template ID to download the template you need.

Template ID
Description

 		 Rev   Last Updated
T93345 QDB 100 & 200 Series Drilling and Installation Instruction A 2021



QDB 200 SERIES INSTALLATION INSTRUCTIONS

Click on the blue drawing number to download the document you need.

Drawing
Number
Description

 		 Rev Last Updated
T93350 QDB 100 & 200 Series Auxiliary Deadbolt Installation Instructions A 2021
T93349 QDB 100 & 200 Classroom Supplemental Handing Instructions A 2021
T93347 QDB 100 & 200 SFIC Supplemental Instruction A 2021
T93346 QDB 284 Grade 2 Single-Sided Deadbolt Installation Instructions A 2021
T93740 QDB 284 Installation Instruction B 2022
T93357 QDB 285 Grade 2 Indicator Deadbolt Installation Instruction A 2021
T93345 QDB 288 Grade 2 Key Control Deadbolt Installation Instructions A 2021
T93348 QDB Deadbolt 6 Way Latch Installation Instructions A 2021

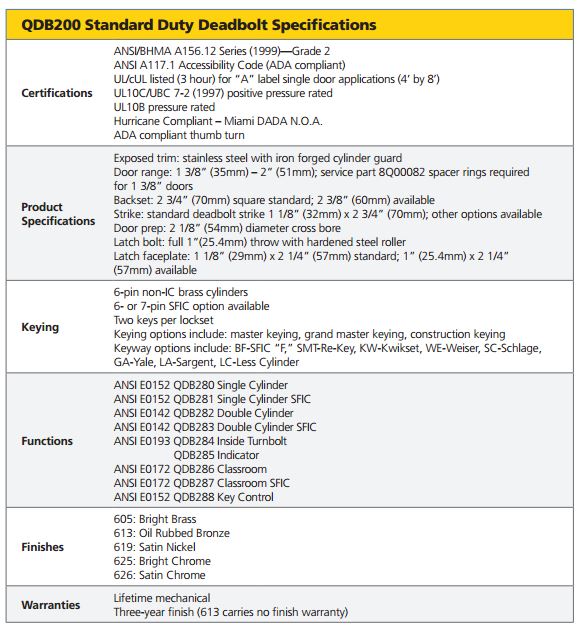

SPECIFICATIONS

Certifications

  • The product is certified to ANSI/BHMA A156.12 Series - Grade 2.
  • The product complies with ANSI A117.1 Accessibility Code (ADA compliant).
  • The product is UL/cUL listed (3 hour) for "A" label single door applications (4' by 8').
  • The product is UL10C/UBC 7-2 positive pressured rated.
  • The product is UL10B pressure rated.
  • The product is Hurricane Compliant - Miami DADA N.O.A.
  • This product is thumb turn ADA compliant.

Product Specifications

  • Exposed trim: stainless steel with iron forged cylinder guard
  • Door range: 1 3/8" (35mm)- 2" (51mm)
    • Service part 8Q00082 spacer ringers required for 1 3/8" doors
  • Backset: 2 3/4" (70mm) square standard; 2 3/8" (60mm) available
  • Strike: standard deadbolt strike 1 1/8" (32mm) x 2 3/4" (70mm)
    • Other options available
  • Door prep: 2 1/8" (54mm) diameter cross bore
  • Latch bolt: full 1" (25.4mm) throw with hardened steel roller
  • Latch faceplate: 1 1/8" (29mm) x 2 1/4" (57mm) standard; 1" (25.4mm) x 2 1/4" (57mm) available

Keying

  • 6-pin non-IC brass cylinders
  • 6- or 7- pin SFIC option available

  • Two keys per lockset

    Keying options

    • Master keying
    • Grand master keying
    • Construction keying

    Keyway options

    • BF-SFIC "F"
    • SMT-Re-Key
    • KW-Kwikset
    • WE-Weister
    • SC-Schlage
    • GA-Yale
    • LA-Sargent
    • LC-Less Cylinder

Functions

  • ANSI E0152 QDB280 Single Cylinder
  • ANSI E0152 QDB281 Single Cylinder SFIC
  • ANSI E0142 QDB282 Double Cylinder
  • ANSI E0142 QDB283 Double Cylinder SFIC
  • ANSI E0193 QDB284 Inside Turnbolt
  • QDB285 Indicator
  • ANSI E0172 QDB286 Classroom
  • ANSI E0172 QDB287 Classroom SFIC
  • ANSI E0152 QDB288 Key Control

Finishes

  • 605: Bright Brass
  • 613: Oil Rubbed Bronze
  • 619: Satin Nickel
  • 625: Bright Chrome
  • 626: Satin Chrome

Warranties

  • Lifetime mechanical
  • Three-year finish (613 carries no finish warranty)
