5 Knuckle FBB Full Mortise Hinge Templates

  • Updated

5 Knuckle FBB Full Mortise Hinge Templates

5 Knuckle FBB Full Mortise - Standard Weight

Available Models and Materials (Standard Weight):

  • FBB179 – (ANSI A8112) Steel – polished and plated or phosphated and prime coated for painting
  • FBB191 – (ANSI A2112) Brass or bronze – polished and plated or painted
  • FBB191 (32) – (ANSI A5112) Stainless steel – highly polished
  • FBB191 (32D) – (ANSI A5112) Stainless steel – satin finish

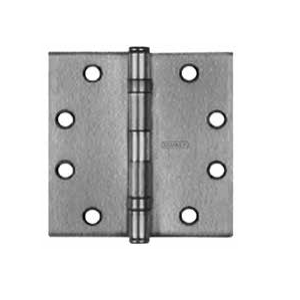

 A 5-knuckle FBB full mortise hinge made of metal, shown in a front view. It features two rectangular plates connected by a cylindrical pin with five knuckles. Each plate has four countersunk screw holes arranged in two vertical rows. The hinge has a smooth, brushed metallic finish.

Templates (Standard Weight)

Templates are arranged in order by size, smallest to largest.

Hinge Size   Template  Revision   Last
 Updated
FBB179
FBB191		 3 1/2" T35-03 Full Mortise Butt Hinges 3.5 x 3 - 3.5 x 3.5 - 3.5 x 5 - 3.5 x 6  B  2021
FBB179
FBB191		 4"  T40-01 Full Mortise Butt Hinges 4 x 3.5 - 4 x 4 - 4 x 5 - 4 x 6 - 4 x 7  B  2021
FBB179
FBB191		 4 1/2" T45-01 Full Mortise Butt Hinges 4.5 x 4 - 4.5 x 4.5 - 4.5 x 5 - 4.5 x 6 - 4.5 x 7 - 4.5 x 8  B  2021
CEFBB179
CEFBB191 		 4 1/2" T45-15_Full Mortise Butt Hinges with Concealed Wires 4.5 x 4 4.5 x 4.5.pdf  B  2021
CSFBB179
CSFBB191		 4 1/2"  T45-17_Full Mortise Template Butt Hinges With Concealed Switch Sizes 4.5 X 4 and 4.5 X 4.5.pdf  B  2021
CECSFBB179
CECSFBB191		 4 1/2" T45-19_Fulll Mortise Template Butt Hinges With Concealed Wires and Concealed Switch Size 4..5x4 and 4.5x4.5.pdf  B  2021
RB-FBB179
RB-FBB191		 4 1/2" T45-10 Raised Barrel Template Butt Hinges for Doors with Square Edge Hinge Stiles  B  2021
RBFBB179
RBFBB191		 4 1/2" T45-11 Raised Barrel Template Butt hinges for Doors with Beveled Edge Hinge Stiles  B  2021
FBB179
FBB191		 5" T50-01 Full Mortise Butt Hinges 5 x 4 - 5 x 4.5 - 5 x 5 - 5 x 7 - 5 x 8  B  2021
CEFBB179
CEFBB191		 5" T50-15_Full Mortise Butt Hinges with Concealed Wires 5 x 4.5.pdf  B  2021
CEFBB179
CEFBB191		 5" Template Full Mortise Butt Hinges with Concealed Wires 5 X 5  B  2021
CSFBB179
CSFBB191		 5" T50-17_Full Mortise Template Butt Hinge with Concealed Switch Size 5 X 4.5.pdf   B  2021
CECSFBB179
CECSFBB191		 5" T50-19_Full Mortise Template Butt Hinges with Concealed Wires and Concealed Switch size 5x4.5 inch.pdf  B  2021
RB-FBB179
RB-FBB191		 5" T50-13 Raised Barrel Template Butt Hinges for Doors with Square Edge Hinge Stiles  B  2021
RB-FBB179
RB-FBB191		 5" T50-14 Raised Barrel Template Butt Hinges for Doors with Beveled Edge Hinge Stiles  B  2021
FBB179
FBB191		 *6" T60-01 Full Mortise Butt Hinges 6 x 4.5 - 6 x 5 - 6 x 6  B  2021



5 Knuckle FBB Full Mortise Hinges - Heavy Weight

Available Models and Materials (Heavy Weight)

  • FBB168 – (ANSI A8111) Steel – polished and plated or phosphated and prime coated for painting
  • FBB199 – (ANSI A2111) Brass or bronze – polished and plated or painted
  • FBB199 (32) – (ANSI A5111) Stainless steel – highly polished
  • FBB199 (32D) – (ANSI A5111) Stainless steel – satin finish
 A heavy-weight 5-knuckle FBB full mortise hinge made of metal, shown in a front view. It features two rectangular plates connected by a cylindrical pin with five knuckles. Each plate has four countersunk screw holes arranged in two vertical rows. The hinge has a durable, brushed metallic finish designed for heavy-duty applications.

Templates (Heavy Weight)

Templates are arranged in order by size, smallest to largest.

Hinge Size Template  Revision  Last
 Updated
FBB168
FBB199		 4 1/2" T45-01 Full Mortise Butt Hinges 4.5 x 4 - 4.5 x 4.5 - 4.5 x 5 - 4.5 x 6 - 4.5 x 7 - 4.5 x 8  B  2021
CEFBB168
CEFBB199		 4 1/2" T45-15 Full Mortise Butt Hinges with Concealed Wires 4.5 x 4 4.5 x 4.5  B  2021
CSFBB168
CSFBB199		 4 1/2" T50-17 Full Mortise Template Butt Hinge with Concealed Switch Size 5" X 4.5"   B  2021
CECSFBB168
CECSFBB199		 4 1/2" T45-19 Fulll Mortise Template Butt Hinges With Concealed Wires and Concealed Switch Size 4.5" x 4" and 4.5" x 4.5"  B  2021
RB-CB168
RB-CB199		 4 1/2" T45-10 Raised Barrel Template Butt Hinges for Doors with Square Edge Hinge Stiles  B  2021
RB-CB168
RB-CB199		 4 1/2" T45-11 Raised Barrel Template Butt hinges for Doors with Beveled Edge Hinge Stiles  B  2021
FBB168
FBB199		 5" T50-01 Full Mortise Butt Hinges 5 x 4 - 5 x 4.5 - 5 x 5 - 5 x 7 - 5 x 8  B  2021
CEFBB168
CEFBB199		 5" T50-15 Full Mortise Butt Hinges with Concealed Wires 5" x 4.5"  B  2021
CEFBB168
CEFBB199		 5" CEFBB Template Full Mortise Butt Hinges with Concealed Wires 5 X 5  B  2021
CSFBB168
CSFBB199		 5" T45-17 Full Mortise Template Butt Hinges With Concealed Switch Sizes 4.5" X 4" and 4.5" X 4.5"   B  2021
CECSFBB168
CECSFBB199		 5" T50-19 Full Mortise Template Butt Hinges with Concealed Wires and Concealed Switch size 5" x 4.5"  B  2021
RB-FBB168
RB-FBB199		 5" T50-13 Raised Barrel Template Butt Hinges for Doors with Square Edge Hinge Stiles  B  2021
RB-FBB168
RB-FBB199		 5" T50-14 Raised Barrel Template Butt Hinges for Doors with Beveled Edge Hinge Stiles  B  2021
FBB168
FBB199		 6 "  T60-01 Full Mortise Butt Hinges 6 x 4.5 - 6 x 5 - 6 x 6  B  2021
FBB168
FBB199		 *8" T80-01 Full Mortise Butt Hinges 8 x 6 - 8 x 8  B  2021

* Only available in steel.



Maintenance – 5 Knuckle FBB Full Mortise Hinges

  • Keep hinge surfaces clean.

  • Clean using a soft, damp cloth only.

  • Do not use chemicals that could damage the protective lacquer coating.

  • As required, apply Shell Darina #2, or an equivalent grease, to the non-load-bearing center hinge knuckle and pin.

  • Bearings do not require lubrication, as they contain polytetrafluoroethylene (PTFE).

Lubrication Procedure

  1. Remove the hinge pins.

  2. Wipe or dip the pins in grease.

  3. Reinsert the pins; the grease will work into the load-bearing surfaces.

  4. Wipe away any excess grease and dirt from the hinge.

* Lubrication applies to hinge pins only; bearings are self-lubricating.
