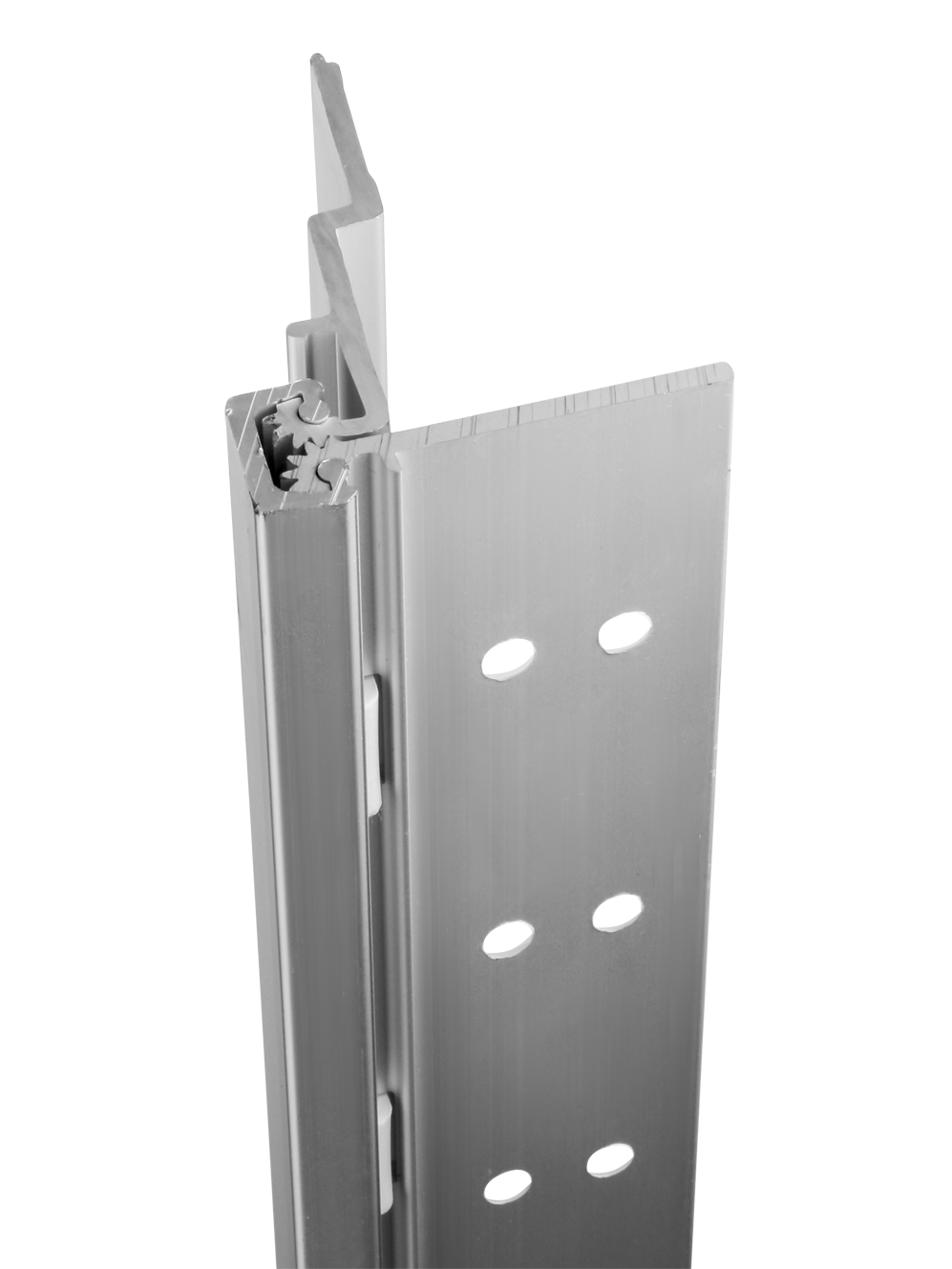

677HD Half Surface, 9/32" Inset, Aluminum Geared Hinges
Templates are arranged in order by size, smallest to largest. Click on the blue link of the template you wish to download or view. For cut sheet information on the Aluminum Continuous Hinges, click here to visit the catalog.
For FAQ's please click here.
677HD – Heavy Duty Half Surface, 9/32" Inset |
Hinge | Size | Template | Description | Rev | Last Updated |
677HD | All Sizes |
T91675 | 677HD - Aluminum Geared Hinge 9/32" Inset, Half Surface |
B | 2021 |
677HD | All Sizes |
T91696 | 677HD - Installation Instructions | B | 2021 |
