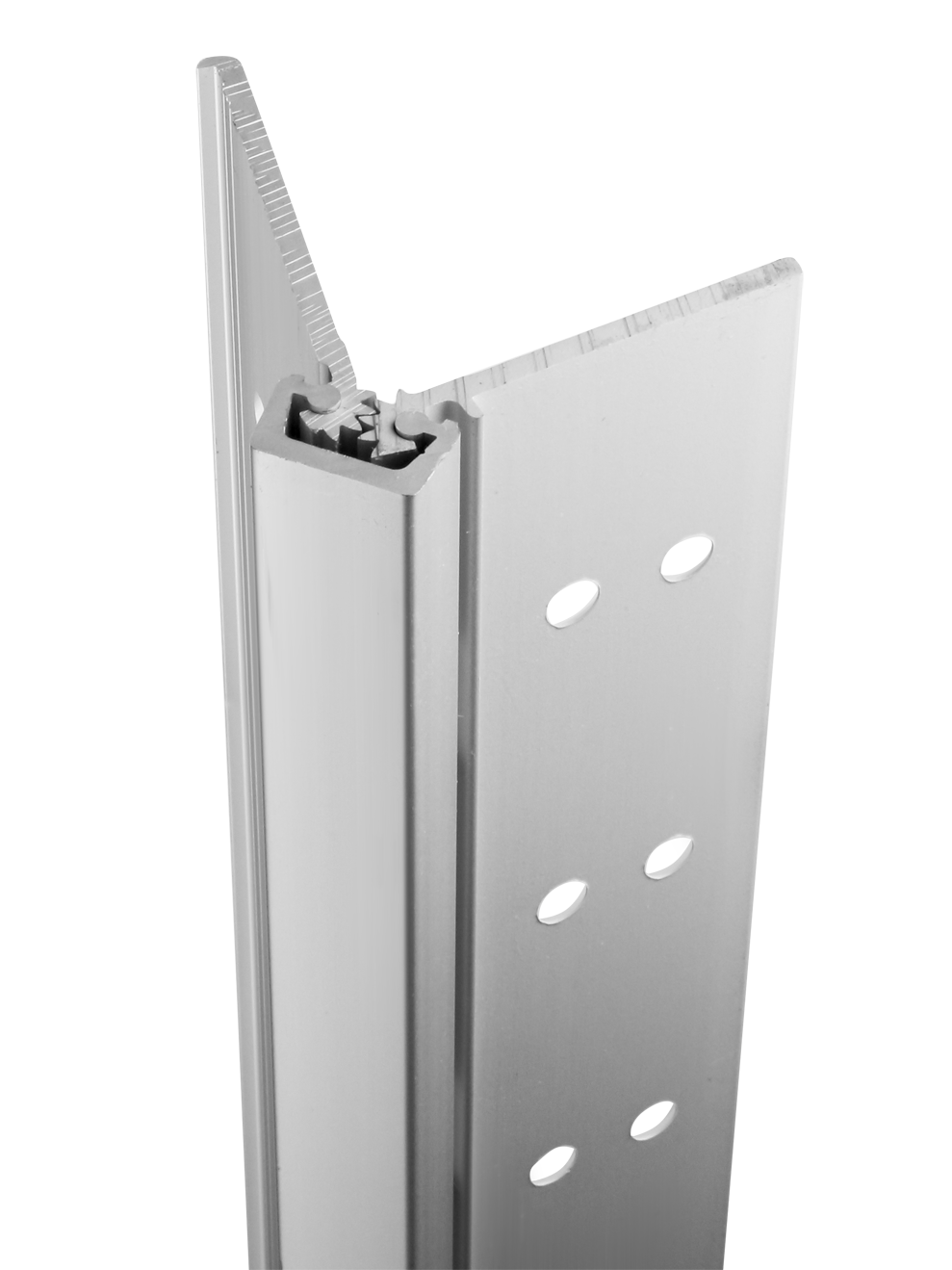

669HDLL Full Mortise 3/32" Inset Aluminum Geared Hinges
Templates are arranged in order by size, smallest to largest. Click on the blue link of the template you wish to download or view. For cut sheet information on the Aluminum Continuous Hinges, click here to visit the catalog.
For FAQ's please click here.
|
669 HD – Heavy Duty for 3/32" inset doors |
 |
| Hinge | Size | Template | Description | Rev | Last Updated |
| 669HDLL | All Sizes | T91667 | 669HDLL - Aluminum Geared Hinges, 3/32" Inset Full Concealed |
B | 2021 |
| 669HD | All Sizes | T91644 | 669HD CE-12 12 Wire Easy Access | B | 2021 |
| 669HD | All Sizes | T91643 | 669HD CE-12 12 Wire Easy Access w/Removable Option | B | 2021 |
| 669HD | All Sizes | T94645 | 669HD CS Concealed Switch | B | 2021 |
| 669HDLL | All Sizes | T91693 | 669HDLL Installation Instructions | B | 2021 |
