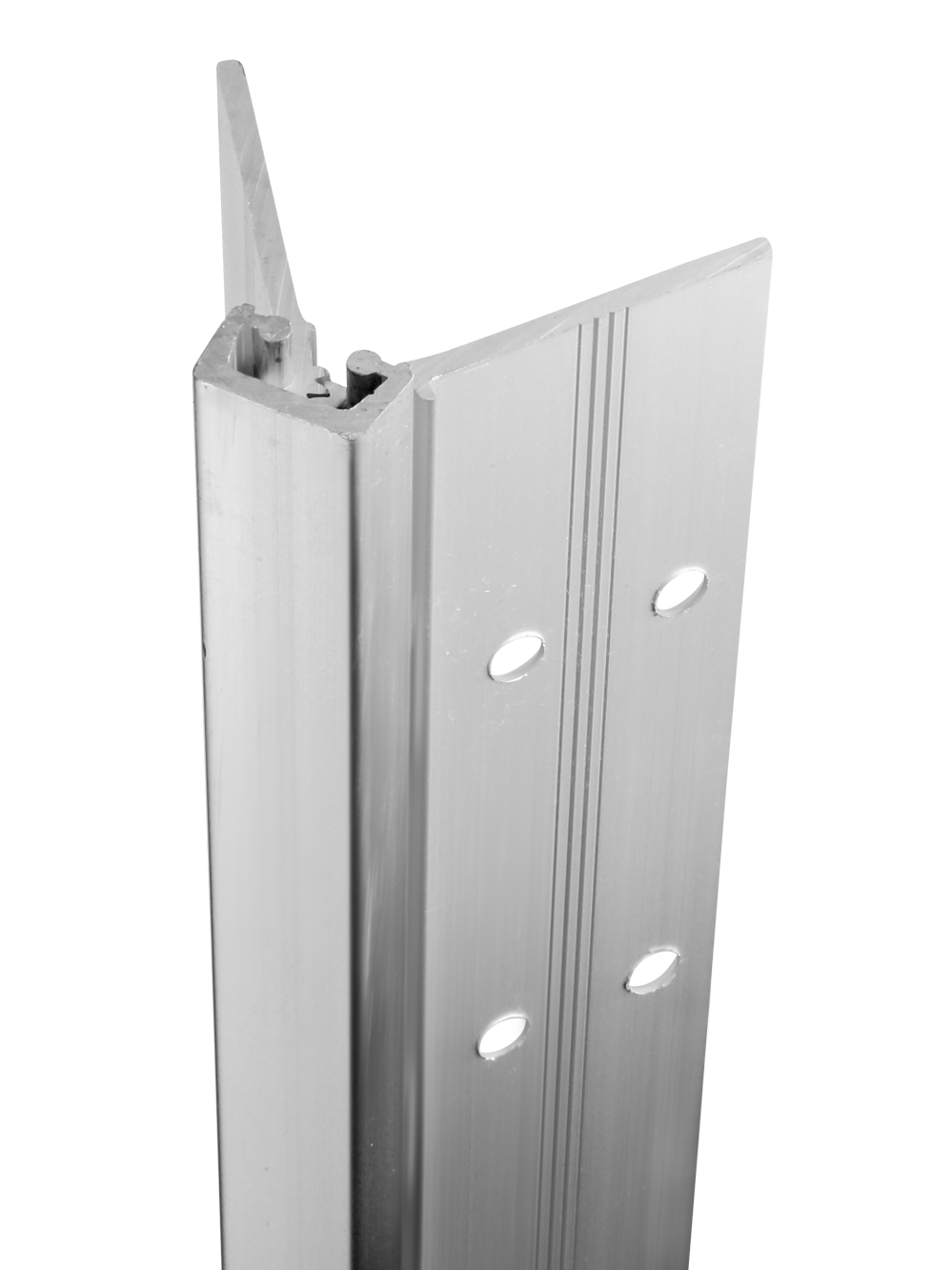

670HD Kawneer Flush Mount Aluminum Geared Hinges
Templates are arranged in order by size, smallest to largest. Click on the blue link of the template you wish to download or view. For cut sheet information on the Aluminum Continuous Hinges, click here to visit the catalog.
For FAQ's please click here.
|
670 HD – Heavy Duty for flush door and frame applications |
 |
| Hinge | Size | Template | Description | Rev | Last Updated |
| 670HLL | All Sizes | T91668 | 670HDLL - Kawneer Aluminum Geared Hinge, Flush Mount, Full Concealed | B | 2021 |
| 670HD CS | All Sizes | T91648 | 670HD - (CS) Concealed Switch | B | 2021 |
| 670HD CE-12 | All Sizes | T91647 | 670HD - (CE-12) 12 Wire Easy Access | B | 2021 |
| 670HD CE-12R | All Sizes | T91646 | 670HD - (CE-12R) 12 Wire Easy Access With Removable Option | B | 2021 |
| 670HD | All Sizes | T91693 | 670HD Installation Instructions | B | 2021 |
