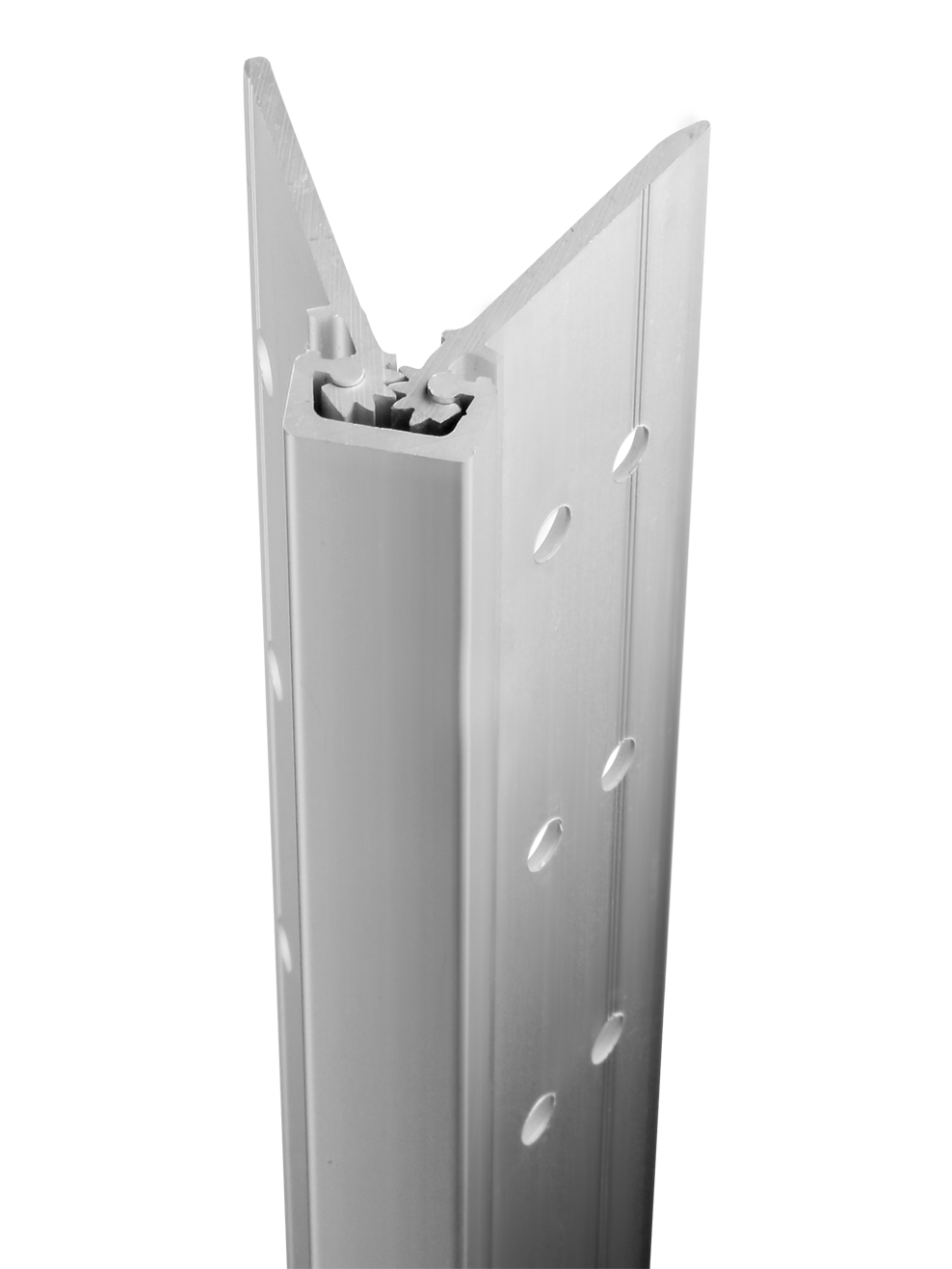

671HDLL 3/32" Inset Aluminum Geared Hinges
Templates are arranged in order by size, smallest to largest. Click on the blue link of the template you wish to download or view. For cut sheet information on the Aluminum Continuous Hinges, click here to visit the catalog.
For FAQ's please click here.
|
671HDLL – Heavy Duty for 3/32" inset doors |
 |
| Hinge | Size | Template | Description | Rev | Last Updated |
| 671HD CE | All Sizes | T91649 | 671HD - (CE) 12 Wire Easy Access | B | 2021 |
| 671HDLL | All Sizes | T91669 | 671HDLL - Aluminum Geared Hinge, 3/32 Inset, Full Concealed | B | 2021 |
| 671HD | All Sizes | T91693 | 671HD - Installation Instructions | B | 2021 |
