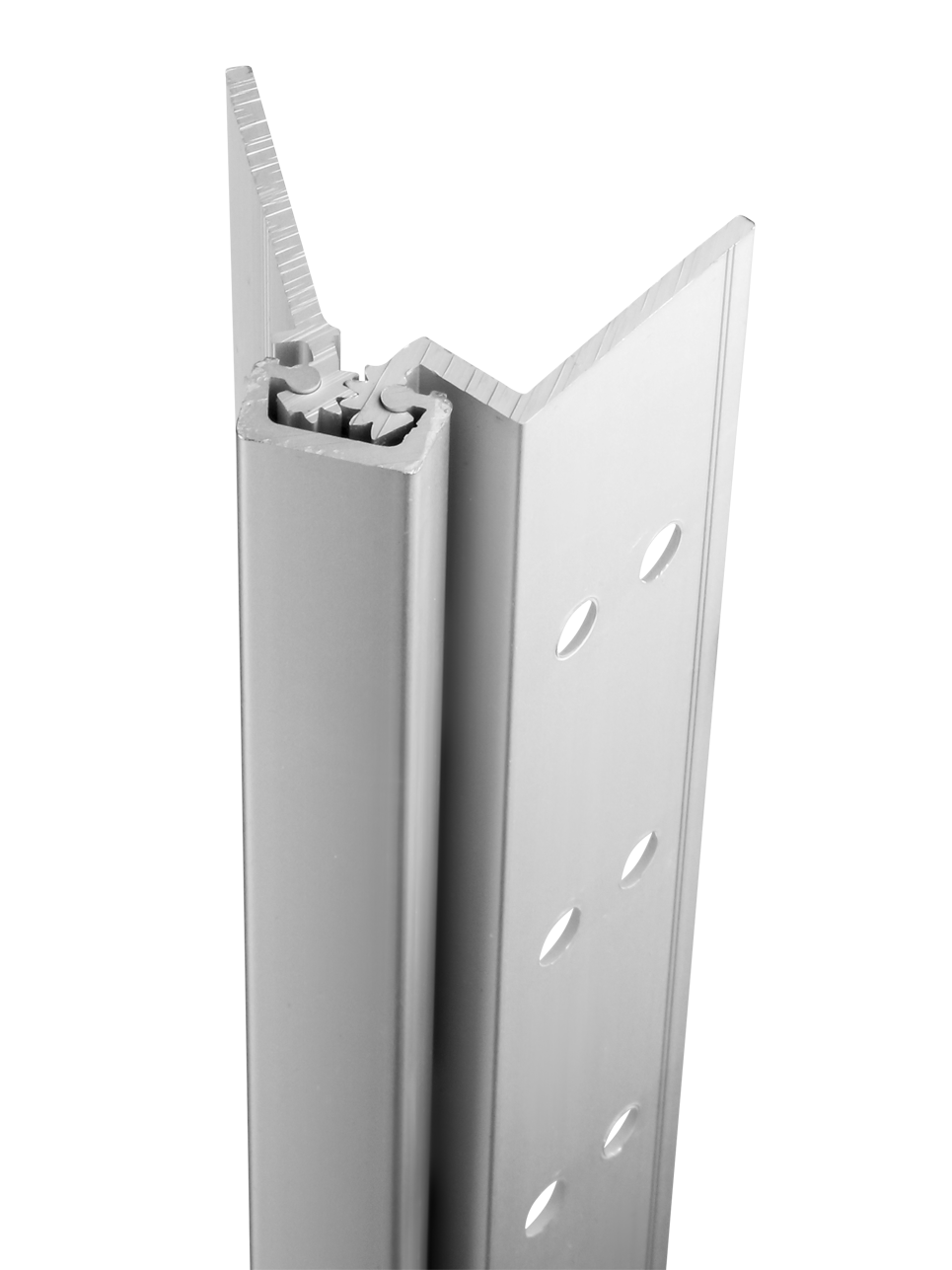

668HD 1/16" Inset Aluminum Geared Hinges
Templates are arranged in order by size, smallest to largest. Click on the blue link of the template you wish to download or view. For cut sheet information on the Aluminum Continuous Hinges, click here to visit the catalog.
For FAQ's please click here.
|
668 HD – Heavy Duty for 1/16" inset doors |
 |
| Hinge | Size | Template | Description | Rev | Last Updated |
| 668HD | All Sizes | T91666 | 668HD - Aluminum Geared hinges, 1/16" Inset, Full Concealed | B | 2021 |
| 668HD | All Sizes | T91693 | 668HD - Installation Instructions | B | 2021 |
