662 Full Mortise Aluminum Continuous Hinges
Templates are arranged in order by size, smallest to largest. Click on the blue link of the template you wish to download or view. For cut sheet information on the Aluminum Continuous Hinges, click here to visit the catalog.
For FAQ's please click here.
|

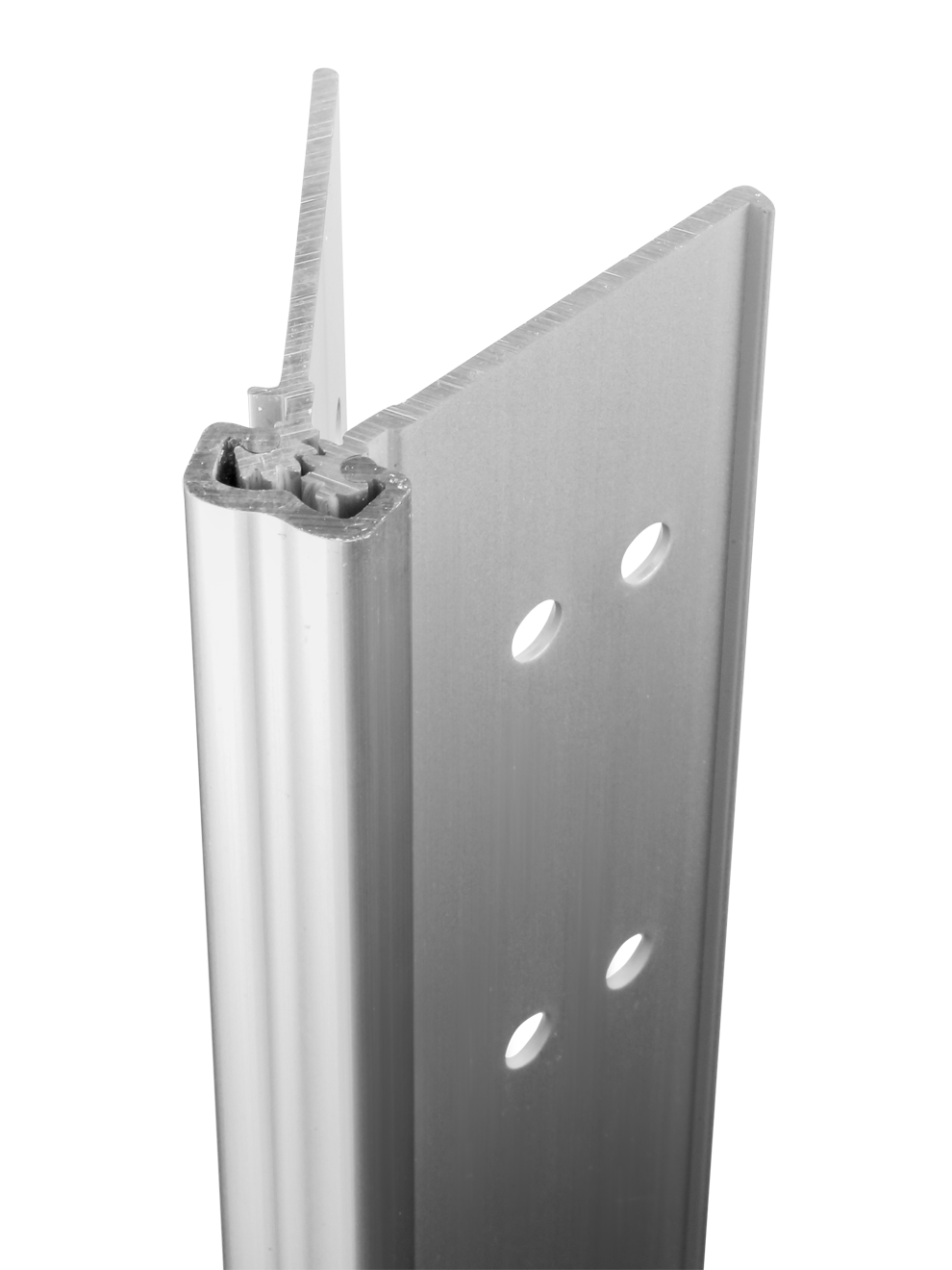

662 HD – Heavy Duty for 3/32" inset doors |
 |
| Hinge | Size | Template # | Description | Rev | Last Updated |
| 662HD CE-12R |
All Sizes | T91650 | 662HD - (CE-12R) 12 Wire Easy Access with Removable Option | B | 2021 |
| 662HD CE-12 |
All Sizes | T91651 | 662HD - (CE-12) 12 Wire Easy Access | B | 2021 |
| 662HD CS |
All Sizes | T91652 | 662HD - (CS) Concealed Switch | B | 2021 |
| 662HD | All Sizes | T91660 | 662 HD - Aluminum Geared Hinge, 3/32" Inset, Full Concealed | B | 2021 |
| 662HD EPT |
All Sizes | T91680 | 661HD, 661HD, and 663 HD - EPT Cutout | B | 2021 |
| 662 HD | All Sizes | T91693 | Installation Instructions 661HDWTLL, 662HDLL, 667HDLL 668 HD, 669HDLL, 670HD, 671HD, 672HDLL, 673HDLL and 674HDL |
B | 2021 |
