Commercial Hardware Mortise Cylinder Configurations for BEST 45 H and 45HW

  • Updated

These parts apply to 1-3/4" thick doors only. For door thicknesses other than 1-3/4", please email technical support.

Single-Keyed Functions

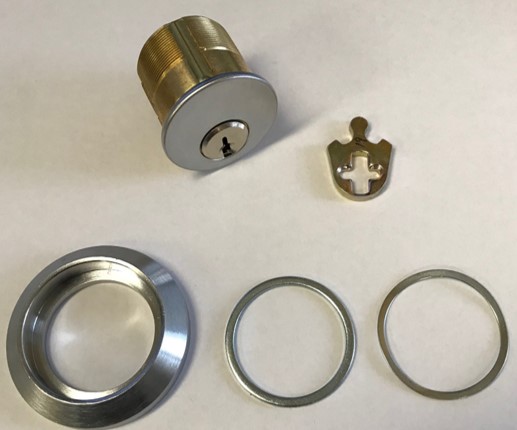

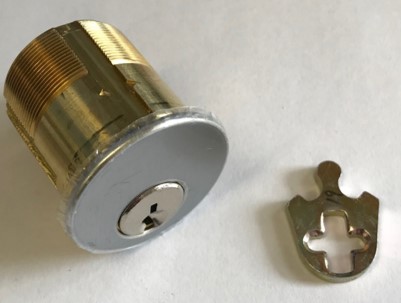

Single_Keyed_Functions.jpg Single_Keyed_with_J_and_M_Trim.jpg
Single-Keyed w/ Sectional Trim Single-Keyed w/ Escutcheon Trim (J & M Trim)
6EQM6-Keyway-COM Code-Finish-CAM-118 6EQM6-Keyway-Com Code-Finish-Cam-138
7187763S (ILCO #19 CAM) 7187763S (ILCO #19 CAM)
8Q01016+Finish (Collar, Spacer, Wavy Washer)

Single-Keyed Function Additional Notes

  • The standard 1-1/8” cylinder length will work with sectional trim.
  • The cylinder cam selection will be irrelevant, as the end user will be required to replace it with the ILCO #19 cam shown above.
  • The STCH collar assembly will require the use of both a spacer and a wavy washer (both included in the kit).

Single-Keyed Function Escutcheon Notes

  • Escutcheon trim will require a longer cylinder. The 1-3/8” cylinder length is going to be equal to a BEST 1E74 cylinder.
  • A collar will not be required for this application. They can use a wavy washer (B34115) if desired. The wavy washer can help with spacing when using J trim.
  • The cylinder cam selection will be irrelevant as the end user will be required to replace it with the ILCO #19 cam shown above.

Double-Keyed Functions

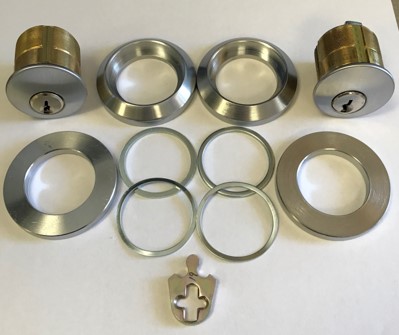

DoubleKeyedFunctions.jpg Single_Keyed_with_J_and_M_Trim.jpg
Double-Keyed w/ Sectional Trim Double-Keyed w/Escutcheon Trim
6EQM6-Keyway-Comb Code-Finish-Cam-118 x2 6EQM6-Keyway-Comb Code-Finish-Cam-138 x2
7187763S (ILCO #19 Cam) x2 7187763S (ILCO #19 Cam) x2

8Q01016 + Finish

(collar, spacer, wavy washer) x2


8Q01089 + finish (spacer) x2
  B34115 Wavy Washer (optional)

Double-Keyed Function Additional Notes

  • The standard 1-1/8” cylinder length will work with double-keyed functions with sectional trim.
  • The cylinder cam selection will be irrelevant, as the end user will be required to replace it with the ILCO #19 cam shown above.
  • The collar assembly will require the use of both a spacer and a wavy washer (both included in the kit).
  • Double-keyed functions will require an additional 3/16” thick spacer for each cylinder, as shown above.

Double-Keyed Function Escutcheon Notes

  • Escutcheon trim will require a longer cylinder. The 1-3/8” cylinder length is going to be equal to a BEST 1E74 cylinder.
  • A collar will not be required for this application. They can use a wavy washer (B34115) if desired. The wavy washer can help with spacing when using J trim.
  • The cylinder cam selection will be irrelevant, as the end user will be required to replace it with the ILCO #19 cam shown above.



    Holdback Function

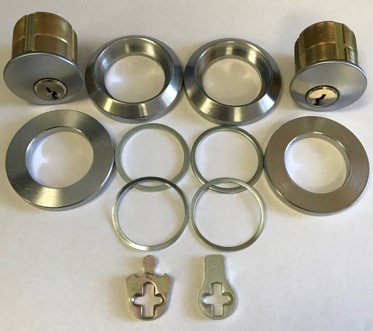

Holdback_with_Sectional_Trim.jpg Holdback_with_j_and_m_trim.jpg
Holdback w/ Sectional Trim Holdback w/ Escutcheon Trim (J & M TRIM)
6EQM6-Keyway-Comb Code-Finish-E-118 x2 6EQM6-Keyway-Comb Code-Finish-E-138 x2
7187763S (ILCO #19 Cam) 7187763S (ILCO #19 Cam)
8Q01016 + Finish (collar, spacer & wavy washer) x2
8Q01089 + finish (spacer) x2
  B34115 Wavy Washer (optional)

Holdback Function with Sectional Trim: Additional Notes

  • The standard 1-1/8” cylinder length will work with double-keyed functions with sectional trim.
  • This function will require both cylinders to be ordered with the E straight cam option. Each lock will require one cylinder with the ILCO #19 and one with the E straight cam.
  • The E straight cam will be used on the outside cylinder.
  • The straight cam is replacing the unique C293, as we do not have a C293 alternate for the STCH cylinder at this time.
  • The STCH collar assembly will require the use of both a spacer and a wavy washer (both included in the kit).
  • Double-keyed functions will require an additional 3/16” thick spacer as shown above.

Holdback Function with Escutcheon Trim: Additional Notes

  • Escutcheon trim will require a longer cylinder. The 1-3/8” cylinder length is going to be equal to a BEST 1E74 cylinder.
  • This function will require both cylinders to be ordered with the E straight cam option. Each lock will require one cylinder with the ILCO #19 and one with the E straight cam.
  • The E straight cam will be used on the outside cylinder.
  • The straight cam is replacing the unique C293, as we do not have a C293 alternate for the STCH cylinder at this time.
  • A collar will not be required for this application. A wavy washer (B34115) can be used if desired. The wavy washer will help with cylinder spacing when J trim is used.
