40H Mortise Spindle Kit Update

  • Updated

Relating to the January 7th, 2015 BEST 40H Spindle and Lever update regarding the new enhanced spindle, we want to clarify our 40H replacement spindle options.

40H Replacement Spindles

The 40HRS Replacement Spindle Kits are engineered to meet ANSI Series 1000 and Federal Specification 86 requirements.

Available Configurations

40HRS-2 — 40H Swivel Spindle Assembly

  • Part Number: 40HRS-2

  • Type: Standard / Swivel spindle

  • Price: 34.00

40HRS-4 — 40H Hook Spindle Assembly

  • Part Number: 40HRS-4

  • Type: Hook spindle

  • Price: 63.00

Thick Door Option (Add-On)

If the door thickness differs from the standard 1 3/4”, select the Thick Door option.

  • Option: Thick Door

  • Requirement: Specify exact door thickness at time of order

  • Add-On Cost: 21.00

How to Order

To ensure accurate fulfillment, please provide:

  1. Series: 40HRS

  2. Kit Number:

    • 2 (Standard/Swivel Spindle)

    • 4 (Hook Spindle)

  3. Door Thickness (if selecting Thick Door option)

Example Order Format:

40HRS-2, Thick Door – 2 1/4”

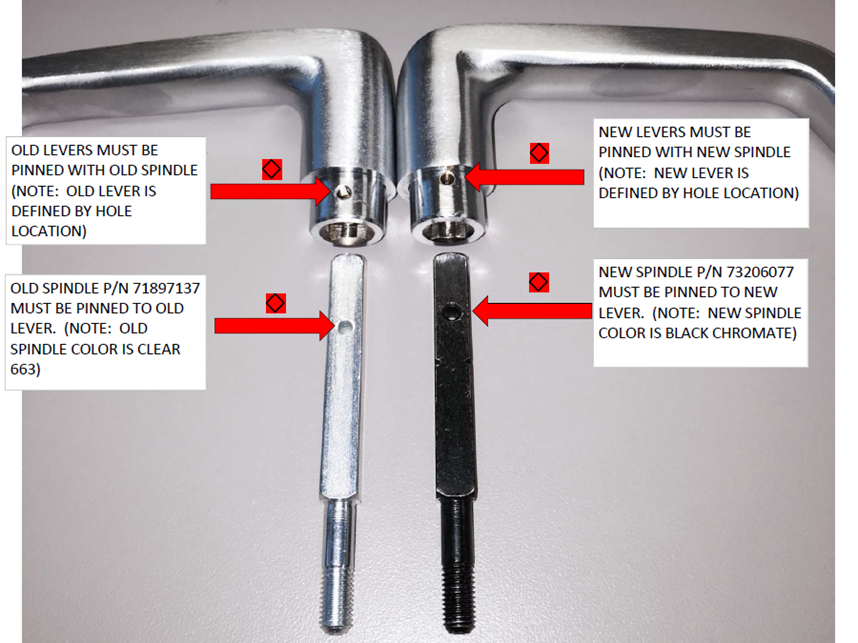

Starting June 12th, 2017 our Kit Number 2 – 40H Standard Spindle will ship with the updated black chromate spindle instead of the old clear chromate spindle.  Updated spindle will be backwards compatible only with existing 40H mortise locks that already have a black chromate spindle.Spindle_Differences_Image.png

If your existing 40H mortise lock does not have a black chromate spindle, then you have a silver (clear) or yellow chromate spindle. The old spindles and levers are not compatible with the newly enhanced spindle and lever. Please see above for the new spindle and lever part numbers as well as a description of the differences between the two. This situation will require you to purchase a complete lever set 40HLS for the appropriate lever and finish you desire to replace. Please see below for how to order information on 40HLS lever sets.



40H Lever Sets

ANSI Series 1000 | Commercial Grade Hardware

The 40H Lever Set series offers durable, ANSI-compliant lever and knob configurations designed for commercial applications.

Available Lever & Knob Styles

Lever Options

Style No. Description
3 Solid tube / return
12* Solid tube / no return
14 Curved / return
15 Contour / angle return
16 Curved / no return
17* RH Gull wing – right hand
17* LH Gull wing – left hand
50 - 91* Decorative designs

* Indicates extra cost option
** Decorative lever design sets are not available.

Knob Option

Style No. Description
4 Round Knob

Available Finishes

605, 606
611, 612
613, 618
619, 622
625, 626
629, 630
690
626AM*, 630AM*

* UltraShield antimicrobial finish (additional cost)

Standard Pricing

Lever Sets

Description Part Number Price
40H Lever Set #3 design 40HLS-3 284.00
40H Lever Set #12 design 40HLS-12 352.00
40H Lever Set #14 design 40HLS-14 284.00
40H Lever Set #15 design 40HLS-15 284.00
40H Lever Set #16 design 40HLS-16 284.00
40H Lever Set #17 RH design 40HLS-17 RH 352.00
40H Lever Set #17 LH design 40HLS-17 LH 352.00
40H Decorative Lever Sets (#50–91) 40HLS-XX* 495.00
40H Knob Set #4 design 40HLS-4 284.00

* Choose one decorative lever design from #50–91

Extra Cost Options

Option Option Code Add-On Cost
Thick Door Specify Thickness 21.00
Security Head Screws SH 21.00
UltraShield Antimicrobial Finish 626AM, 630AM 58.00



Thick Door Configuration

Standard door thickness: 1 3/4"

If the door thickness differs from 1 3/4", specify the exact thickness when ordering. Additional charge applies.

How to Order

To ensure accurate processing, include:

  1. Series: 40HLS

  2. Style Number: (e.g., 14, 17 RH, 4)

  3. Finish Code: (e.g., 626, 630AM)

  4. Options (if required):

    • Thick Door (specify thickness)

    • SH (Security Head Screws)

    • AM finish (if antimicrobial required)

Example Order Format

40HLS-14-626
40HLS-17 RH-630AM-SH
40HLS-3-626, Thick Door – 2 1/4"

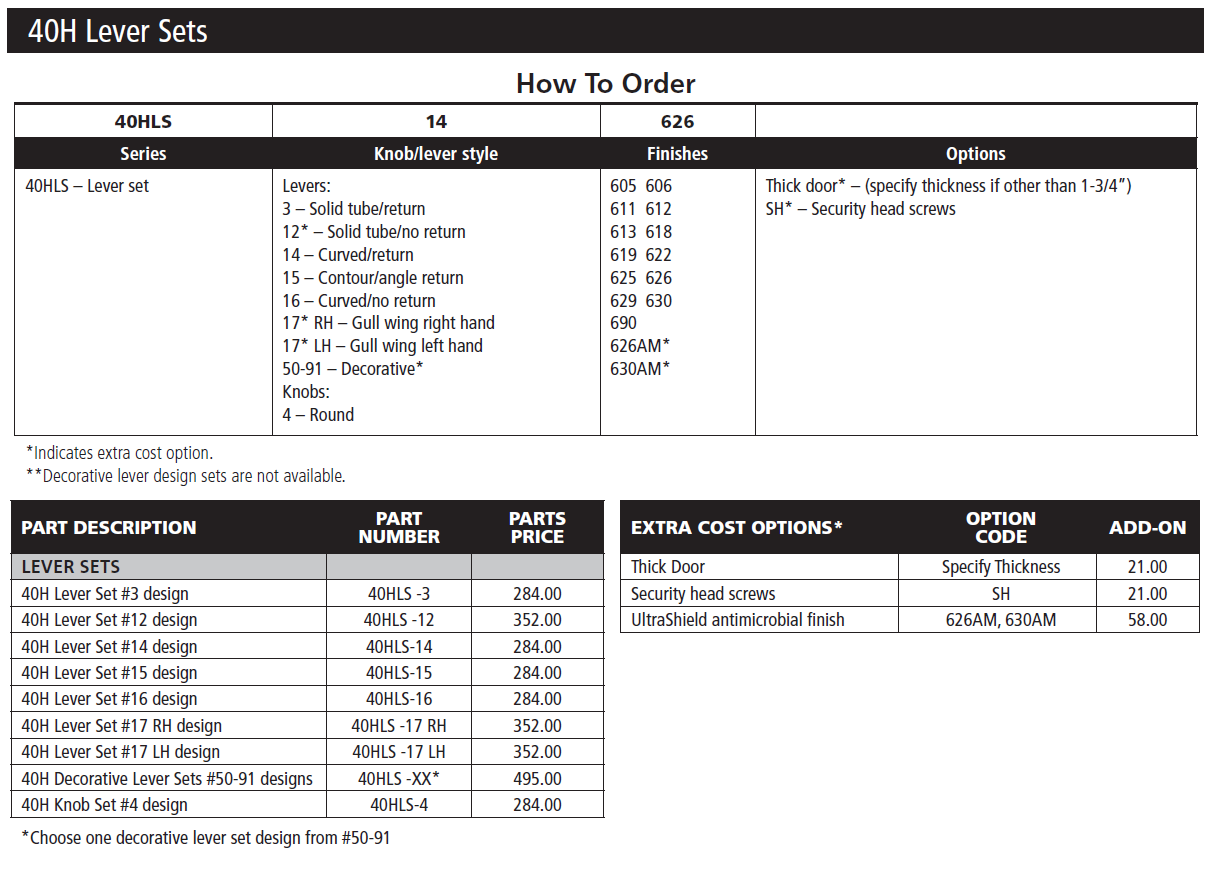

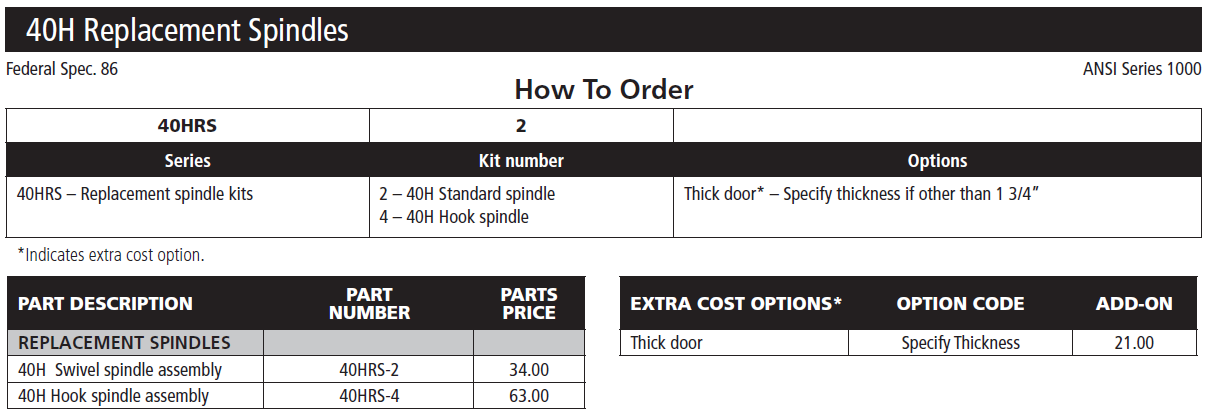

For additional information, please download the 40H Replacement Spindles.

For additional information, please download the 40H Lever Sets.

For additional information, please download the BEST 40H Lever Spindle Bulletin.
