Full Mortise Continuous Hinges
Click on the blue link of the template you wish to download or view. For cut sheet information on the Full Mortise Continuous Hinges, click here to visit the catalog.
For FAQ's please click here.
|

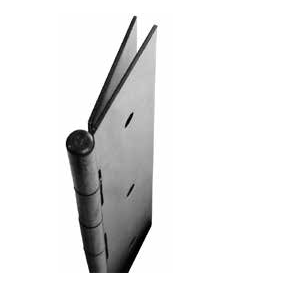

641 – Standard duty, steel for 1/8" inset doors 651 – Standard duty, stainless steel for 1/8" inset doors |
  |
| Hinge | Size | Template | Rev | Last Updated |
| 641 651 |
N/A | F1B Full Mortise (Beveled Edge Mount) Continuous Pinned Hinge (641 & 651) | B | 2021 |
| 641 651 |
N/A | F1S Full Mortise (Square Edge Mount) Continuous Pinned Hinge (641 & 651) | B | 2021 |
| CE641 CE651 |
N/A | T98-600 Continuous Pinned Hinge Concealed Wire Transfer 600 Series | B | 2021 |
| CS641 CS651 |
N/A | T98-601 Continuous Pinned Hinge Door Position Switch 600 Series | B | 2021 |
For EPT Hinges, please follow the catalog "how to order" found here on page 4.
