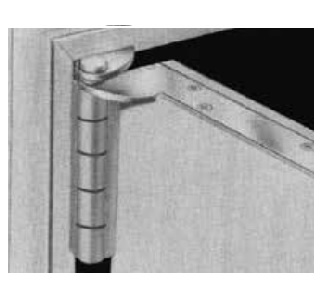

5 Knuckle Heavy Weight Concealed Bearing Pivot Reinforced Hinges
Templates are arranged in order by size, smallest to largest. Click on the blue link of the template you wish to download or view. For cut sheet information on the 5 Knuckle CB Pivot Reinforced Hinges, click here to visit the website.
Steel – polished and plated or phosphated and prime coated for painting
Bronze – polished and plated or painted
Stainless steel – satin finish
|
![]() |
Hinge | Size | Template | Rev | Last Update |
CB211 CB221 |
5" | T50-07 Full Mortise Pivot Reinforced Hinges 5 x 4.5 | B | 2021 |
CB212 CB222 |
5" | T50-08 Full Mortise Pivot Reinforced Hinges for Doors with Square Edge Hinge Stiles 5 x 4.5 | B | 2021 |
CB212 CB222 |
5" | T50-10 Full Mortise Pivot Reinforced Hinges with 4 1/8" Door Plate for Doors with Square Edge Hinge Stiles 5 x 4.5 | B | 2021 |
CB213 CB223 |
5" | T50-09 Full Mortise Pivot Reinforced Hinges for Doors with Beveled Edge Hinge Stiles 5 x 4.5 | B | 2021 |
CB213 |
5" | T50-11 Full Mortise Pivot Reinforced Hinges with 4 Door Plate for Doors with Beveled Edge Hinge Stiles 5 x 4.5 | B | 2021 |
