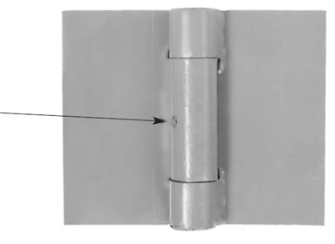

Double Weight Concealed Ball Bearing Prison Hinges
Click on the template you wish to download or view. For more information on the Double Weight Concealed Ball Bearing Prison Hinges, click here.
|
BB855 – (ANSI A8381) – steel with a welded pin. Phosphated and prime coated for painting |
 |
| Hinge | Size | Template | Description | Rev | Last Updated |
| BB855 Application A | N/A | No Hole Weld-on | - | - | |
| BB855 Application B | 5" | T50-98 | BB855 Full Surface Hinge Application B | B | 2021 |
| BB855 Application C | N/A | No Hole Weld-on | - | - | |
| BB855 Application D | 5" | T50-97 | BB855 Full Mortise Hinge Application D | B | 2021 |
| BB855 Application E | N/A | No Hole Weld-on | - | - | |
| BB855 Application F | N/A | No Hole Weld-on | - | - | |
| BB855 Application G | N/A | No Hole Weld-on | - | - | |
| BB855 Application H | 5" | T50-94 | BB855 Half Mortise Hinge Application H | B | 2021 |
