5 Knuckle FBB Full Surface Hinge Templates

  • Updated

5 Knuckle FBB Full Surface Hinge Templates

5 Knuckle FBB Full Surface Hinges - Standard Weight

Available Models and Materials (Standard Weight):

  • FBB171 (ANSI A8312) – Steel – polished and plated or phosphated and prime coated for painting
  • FBB110 (ANSI A2312) – Brass or bronze – polished and plated or painted
  • FBB110 (32) (ANSI A5312) – Stainless steel – highly polished
  • FBB110 (32D) (ANSI A5312) – Stainless steel – satin finish

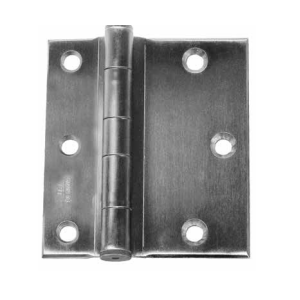

 A 5-knuckle full surface hinge made of metal, shown in a front view. It features two rectangular plates connected by a cylindrical pin with five knuckles. The left plate has three countersunk screw holes arranged vertically, and the right plate has three countersunk screw holes arranged in two rows. The hinge has a brushed metallic finish.

Templates (Standard Weight)

Templates are arranged in order by size, smallest to largest.

Hinge Size Template
FBB171
HTFBB171
FBB110
HTFBB110		 4 1/2" T45-60 Full Surface Hinge for Mineral Core Doors with Channel Iron Jambs 4.5

FBB171
HTFBB171
FBB110
HTFBB110		 6" T50-60 Full Surface Hinge for Mineral Core Doors with Channel Iron Jambs 5



5 Knuckle FBB Full Surface Hinges - Heavy Weight

Available Models and Materials (Heavy Weight):

  • FBB169 (ANSI A8311) – Steel – polished and plated or phosphated and prime coated for painting
  • FBB109 (ANSI A2311) – Brass or bronze – polished and plated or painted
  • FBB109 (32) (ANSI A5311) – Stainless steel – highly polished
  • FBB109 (32D) (ANSI A5311) – Stainless steel – satin finish

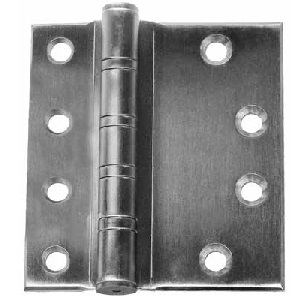

 A heavy-weight 5-knuckle FBB full surface hinge made of metal, shown in a front view. It features two rectangular plates connected by a cylindrical pin with five knuckles. Each plate has four countersunk screw holes arranged in two vertical rows. The hinge has a robust, brushed metallic finish designed for heavy-duty applications.

Templates (Standard Weight)

Templates are arranged in order by size, smallest to largest.

Hinges Size Template
FBB169
HTFBB169
FBB109
HTFBB109		 4 1/2" T45-60 Full Surface Hinge for Mineral Core Doors with Channel Iron Jambs 4.5

FBB169
HTFBB169
FBB109
HTFBB109		 5" T50-60 Full Surface Hinge for Mineral Core Doors with Channel Iron Jambs 5

FBB169
HTFBB169
FBB109
HTFBB109		 6 "  T60-60 Full Surface Hinges for Mineral Core Doors with Channel Iron Jambs 6



Maintenance – 5 Knuckle FBB Full Surface Hinges

  • Keep hinge surfaces clean.

  • Clean using a soft, damp cloth only.

  • Do not use chemicals that could damage the protective lacquer coating.

  • As required, apply Shell Darina #2, or an equivalent grease, to the non-load-bearing center hinge knuckle and pin.

  • Bearings do not require lubrication, as they contain polytetrafluoroethylene (PTFE).

Lubrication Procedure

  1. Remove the hinge pins.

  2. Wipe or dip the pins in grease.

  3. Reinsert the pins; the grease will work into the load-bearing surfaces.

  4. Wipe away any excess grease and dirt from the hinge.

* Lubrication applies to hinge pins only; bearings are self-lubricating.
