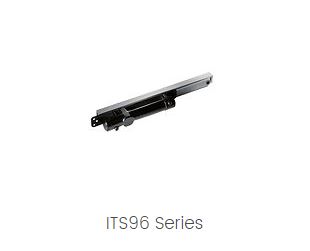

ITS96 Series Door Closer
Template/Technical Drawing
Click on the blue link under Template ID to open the template you wish to view.
| Template ID | Description |
|---|---|
| 08279654 | ITS9625 Wood Door & Frame Closer in Frame Track in Door |
| 08279632 | ITS9613 STD Wood Door & Wood Frame Closer in Door Track in Frame without Mounting Brackets |
| 08279633 | ITS9613 STD Wood Door & Wood Frame Closer in Door Track in Frame with Mounting Brackets (accessory mounting brackets 08082820) |
| 08279634 | ITS9625 Wood Door & Wood Frame Closer in Door Track in Frame without Mounting Brackets |
| 08279635 | ITS9625 Wood Door & Wood Frame Closer in Door Track in Frame with Accessory Mounting Brackets |
| 08279636 | ITS9613 Wood Door & Metal Frame Closer in Door Track in Frame without Mounting Brackets |
| 08279637 | ITS9625 Wood Door & Metal Frame Closer in Door Track in Frame without Mounting Brackets |
| 08279622 | ITS9613 Metal Door & Metal Frame Closer in Door Track in Frame without Mounting Brackets |
| 08279623 | ITS9613 Metal Door & Metal Frame Closer in Door Track in Frame with Mounting Brackets |
| 08279624 | ITS9625 Metal Door & Metal Frame Closer in Door Track in Frame without Mounting Brackets |
| 08279625 | ITS9625 Metal Door & Metal Frame Closer in Door Track in Frame with Mounting Brackets |
| 08279652 | ITS9613 Wood Door & Wood Frame Closer in Frame Track in Door without Mounting Brackets |
| 08279642 | ITS9613 Metal Door & Metal Frame Closer in Frame Track in Door without Mounting Brackets |
| 08279643 | ITS9613 Metal Door & Metal Frame Closer in Frame Track in Door with Mounting Brackets |
| 08279644 | ITS9625 Metal Door & Metal Frame Closer in Frame Track in Door without Mounting Brackets |
| 08279645 | ITS9625 Metal Door & Metal Frame Closer in Frame Track in Door with Mounting Bracket |
| 08279653 | ITS9613 Wood Door & Wood Frame Closer in Frame Track in Door with Mounting Brackets |
| 08279655 | ITS9625 Wood Door & Wood Frame Closer in Frame Track in Door with Mounting Bracket |
| 08279656 | ITS9613 Wood Door & Metal Frame Closer in Frame Track in Door without Mounting Brackets |
| 08279657 | ITS9625 Wood Door & Metal Frame Closer in Frame Track in Door without Mounting Brackets |
| 08280910 | ITS9613 Wood Door for use with 3/4" Offset Top Pivot Closer in Door Track in Frame without Mounting Bracket |
| 08282490 | ITS9613 Wood Door & Metal Frame Closer in Door Track in Frame with Mounting Brackets |
Installation Instructions
Click on the blue link under Template ID to open the instructions you wish to view.
| Template ID | Description |
|---|---|
| 08279631 | ITS96 Series (ITS9613 and ITS9625) Wood Door Closer in Door Track in Frame Installation Instructions |
| 08279621 | ITS96 Series (ITS9613 and ITS9625) Metal Door Closer in Door Track in Frame Installation Instructions |
| 08279651 | ITS96 Series (ITS9613 AND ITS9625 OHC) Wood Door Closer in Frame Track in Door Installation Instructions |
| 08279641 | ITS96 Series (ITS9613 AND ITS9625 OHC) Metal Door Closer in Frame Track in Door Installation Instructions |
