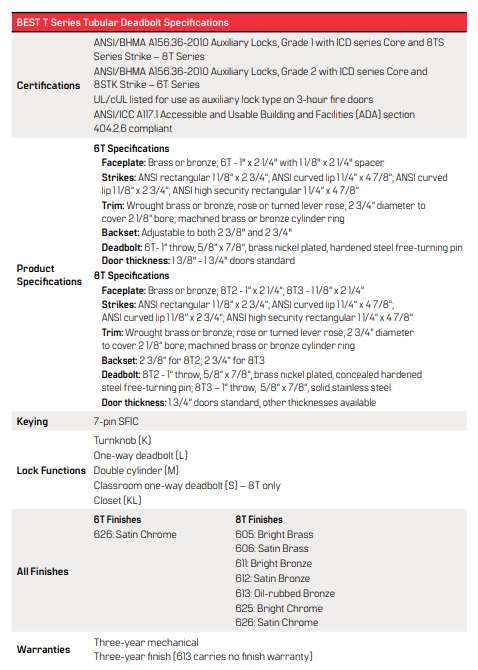

6T Templates and Instructions

Certifications

• The product is ANSI/BHMA A156.36-2010 Auxiliary Locks, Grade 1 with ICD series Core and 8TS Series Strike - 8T Series.
• The product is ANSI/BHMA A156.36-2010 Auxiliary Locks, Grade 2 with ICD series Core and
  8STK Strike - 6T Series
• The product is UL/cUL listed for use as auxiliary lock type on 3-hour fire doors.
• The product is ANSI/ICC A117.1 Accessible and Usable Building and Facilities (ADA) section.
• The product is 4042.6 compliant.

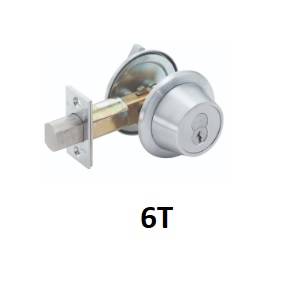

6T Specifications

• Faceplate:

  • Brass or bronze
  • 6T - 1" x 2 1/4" with 11/8" x 2 1/4" spacer

• Strikes:

  • ANSI rectangular 11/8" x 2 3/4"
  •  ANSI curved lip 11/4" x 47/8"
  • ANSI curved lip 11/8" x 2 3/4"
  • ANSI high security rectangular 11/4"x47/8"

• Trim:

  • Wrought brass or bronze
  • rose or turned lever rose
  • 2 3/4" diameter to cover 21/8" bore
  • machined brass or bronze cylinder ring

• Backset:

  • Adjustable to both 2 3/8" and 2 3/4"

• Deadbolt:

  • 6T-1" throw, 5/8"x7/8"
  • brass nickel-plated
  • hardened steel free-turning pin

• Rose:

  • 3 1/2" diameter
  • mounting screws concealed

• Strikes:

  • ANSI strike 2 3/4" x 1 1/8" with curved lip
  • ANSI S3 4 7/8" x 1 1/4" with curved lip

• Door thickness:

  • 13/8"-13/4" doors standard

8T Specifications

• Faceplate:

  • Brass or bronze
  • 8T2-1"x 21/4"
  • 8T3-11/8"x21/4"

• Strikes:

  • ANSI rectangular 11/8" x 2 3/4"
  •  ANSI curved lip 11/4" x 47/8"
  • ANSI curved lip 11/8" x 2 3/4"
  • ANSI high security rectangular 11/4"x47/8"

• Trim:

  • Wrought brass or bronze
  • rose or turned lever rose
  • 2 3/4" diameter to cover 21/8" bore
  • machined brass or bronze cylinder ring

• Backset:

  •  2 3/8" for 8T2; 23/4" for 8T3

• Deadbolt:

  • 6T-1" throw, 5/8"x7/8"
  • brass nickel-plated
  • concealed hardened steel free-turning pin
  • 8T3-1 throw, 5/8"x7/8"
  • solid stainless steel

• Door thickness:

  • 13/4" doors standard
  • other thicknesses available

Keying

• 7-pin SFC

Lock Functions

    Single Keyed:

• Turnknob (K)
• One-way deadbolt (L)
• Lock Functions Double cylinder (M)
• Classroom one-way deadbolt (S)-8T only
• Closet(KL)

    Keyless:

• Passage-N (F75), NX (F89)
• Exit-Y (F89)
• Privacy - L (F76)
• Single dummy trim-1DT

All Finishes

    6T Finishes:

• 626: Satin Chrome

    8T Finishes:

• 605: Bright Brass
• 606: Satin Brass
• 611: Bright Bronze
• 612: Satin Bronze
• 613: Oil-rubbed Bronze
• 625: Bright Chrome
• 626: Satin Chrome


Warranties

• Three-year mechanical
• Three-year finish (613 carries no finish warranty)
