9030/9230 Dummy Bars |
Click on the blue Document ID to open the installation instructions.
Installation Instructions
|
Document ID |
Description |
|
95011794 |
9030/9020 Dummy Bar 9030MS/9230MS Dummy Bar with Microswitch |
Installation Instructions: 9030/9230 Dummy Bar and 9030MS/9230MS Dummy Bar with Micro Switch
- Measure and mark horizontal reference line on push side of door. 40 5/16" from finished floor recommended. Measure and mark vertical referenced line on push side of door. See dimension above.
- Drill door for mounting plates. See illustration above and install with proper screws per above.
- Verify door width. If no cutting is required, proceed to Step 4. If cutting is required; Determine length by measuring dimension "X". Mark and cut bar per detail below.
- Remove hinge side mounting plate. Slide touch bar and rail assembly under lip of push side mounting plate. Re-install hinge side mounting plate and secure with proper screws.

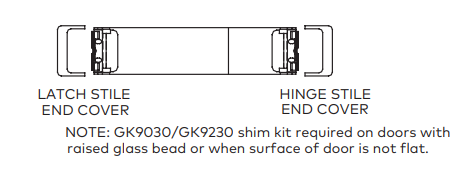

- Install end cover(s) with (4) #8 x 1/4" F.H.P.U.C.M.S.
