Question What door thickness range can the 8K accommodate? |
|
Answer The 8K comes preset from the factory to fit 1 ¾” thick doors but can be field-adjusted to fit doors ranging from 1 3/8” to 2” thick. Additionally, the lock assembly can be modified to accommodate doors up to 3” thick using a special rose trim (E). |
|
Additional Information If you would like a PDF copy of this file, please click here. For specification information or more information on the 8K, please see the catalog. |

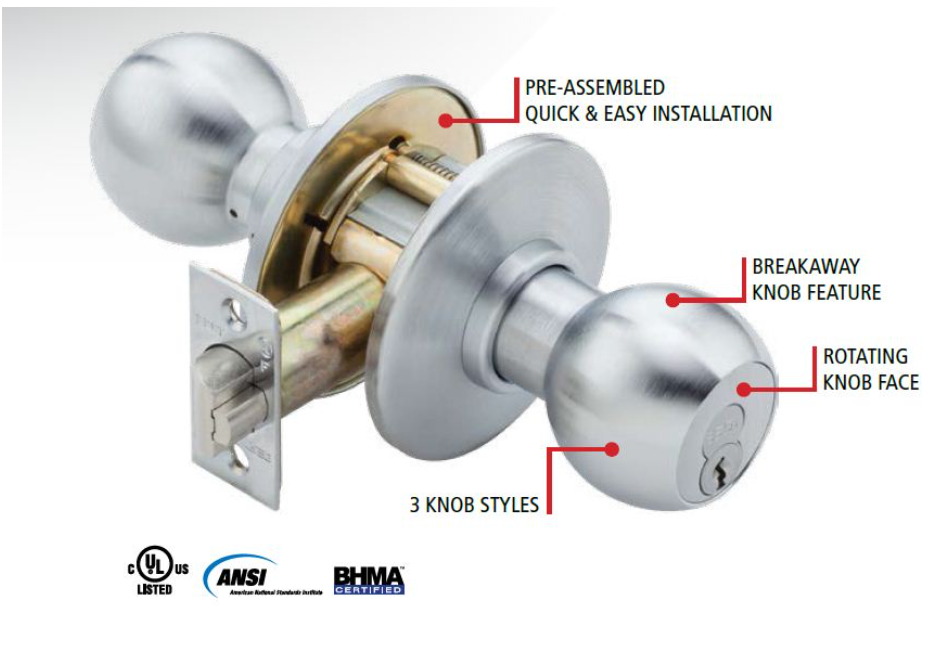

| 8K Lock |
