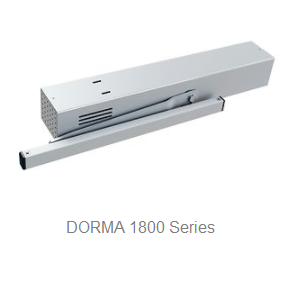

DORMA 1800 Series |
Click on the Drawing ID to open the template you wish to view. For installation instructions, click on the drawing number you wish to open.
Templates | |
| Drawing ID | Description |
| 08280002 | 1856 HT, 1856 SFT, 1856 HT SD, 1856 SFT SD Track Installation (Pull Side Mount - RH Door) |
| 08280203 | 1816 HJ X Drop Plate, 1816 SJF X Drop Plate 1816 HJ SD X Drop Plate, 1816 SJF SD X Drop Plate Top Jamb Drop Plate Installation X Drop Plate (Push Side Mount) |
| 08280202 | 1816 HJ, 1816 SJF, 1816 HJ SD, 1816 SFJ SD Top Jamb Installation (Push Side Mount) |
| 08280003 | 8656 HT, 1856 SFT Less than 2" frame face 1856 HT SD, 1856 SFT SD Less than 2" frame Face Track Installation (Pull Side Mount - RH Door) |
Installation Instructions | |
| Drawing ID | Description |
| 08220880 | 1856 HT SD, 1856 SFT SD Surface Applied Door Closer HT (Standard Track) < 2" frame face with smoke detector SFT (Swing Free Track) < 2" frame face with smoke detector |
| 08280001 | 1856 HT, 1856 SFT Surface Applied Closer HT (standard track) < 2" Frame Face SFT (Swing Free Track) < 2" Frame Face |
| 08280201 | 1816 HJ & SFJ Surface Applied Closer HJ (Standard Jamb Mount) x Drop Plate SFJ (Swing Free Jamb Mount) X Drop Plate |
| 08222050 | 1816 HJ, SD & SJF SD Surface Applied Closer HJ (Standard Jamb Mount) X DP with Smoke Detector SJF (Swing Free Jamb Mount) X DP with Smoke Detector |
| 08222050 | 1800 Solenoid Replacement Instructions |
