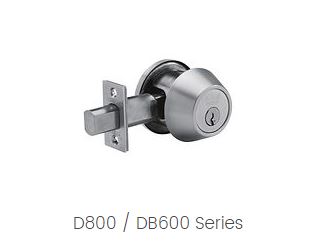

D800 Series Grade 1 DB600 Series Grade 2 Deadbolts |
Click on the Template ID to open the template you wish to view. For installation instructions, click on the drawing number you wish to open.
TEMPLATES/TECHNICAL DRAWINGS
Template ID |
Description |
76019039 | DB600 SERIES FACE PLATE 1" or BEVELED WITH 1/4" RADIUS CORNERS WOOD DOOR TEMPLATE |
76019009 | DB600 SERIES FACEPLATE FLAT OR 1" BEVELED WOOD DOOR TEMPLATE |
D800 | D800 SERIES FACEPLATE 1-1/8" FLAT OR BEVELED WOOD AND METAL DOOR TEMPLATES |
76019028 | D800 METAL DOOR TEMPLATE (BORED HOLE 1-1/2" DIA) FACEPLATE 1-1/8" FLAT OR BEVELED |
76019029 | D800 WOOD DOOR TEMPLATE (BORED HOLE 1-1/2" DIA) FACEPLATE 1-1/8" FLAT OR BEVELED |
76014893 | D881 WOOD DOOR TEMPLATES |
76014894 | D881 METAL DOOR TEMPLATES |
76019008 | DB600 SERIES FACE PLATE 1" OR BEVELED METAL DOOR TEMPLATE |
76019007 | DB600, D800 SERIES FACEPLATE 1-1/8" FLAT OR BEVELED WOOD DOOR TEMPLATE |
76019010 | DB600, D800 SERIES FACEPLATE 1-1/8" FLAT OR BEVELED METAL DOOR TEMPLATE |
76019028 | D800 SERIES (BORED HOLE 1-1/2" DIAMETER) FACEPLATE 1-1/8" FLAT OR BEVELED |
Installation Instructions |
|
76002002 | DB600 SERIES DEAD BOLT INSTALLATION INSTRUCTIONS FOR SINGLE & DOUBLE CYLINDER DEADBOLTS |
76010390 | D881 INSTALLATION INSTRUCTIONS |
76010391 | D860/861/862/863/880 INSTALLATION INSTRUCTIONS |
76013280 | D871 DEADBOLT INSTALLATION INSTRUCIONS |
Strike Templates/Technical Drawings | |
5004 | 5004 STRIKE WOOD AND METAL JAMB TEMPLATES |
5103 | 5103 STRIKE WOOD JAMB AND METAL JAMB TEMPLATES |
5203W | 5203 STRIKE WOOD JAMB TEMPLATE |
5006 | 5006 STRIKE WOOD AND METAL JAMB TEMPLATES |
