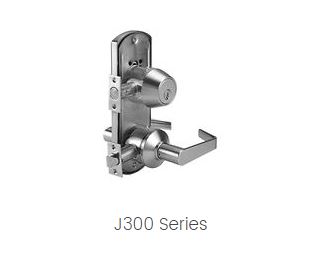

| J300 Series Grade 2 Interconnected Locksets |
Click on the Template ID to open the template you wish to view. For installation instructions, click on the drawing number you wish to open.
TEMPLATES/TECHNICAL DRAWINGS
| Template ID |
Description |
| 76014874 | J310, J353 WITH 4" CENTERS FACE PLATE 1-1/8" FLAT OR BEVELED WOOD AND METAL DOORS TEMPLATES |
| 76014880 | J310, J353 WITH 4" CENTERS FACE PLATE 1" FLAT OR BEVELED RADIUS CORNER WOOD AND METAL DOORS TEMPLATES |
| 76014876 | J310, J353 WITH 4" CENTERS FACE PLATE 1" FLAT OR BEVELED WOOD AND METAL DOORS TEMPLATES |
| 76020190 | J310, J353 WITH 4" CENTERS FACE PLATE 1" FLAT OR BEVELED RADIUS CORNERS WOOD AND METAL DOORS TEMPLATES |
| 76020191 | J310, J353 WITH 5-1/2" CENTERS FACE PLATE 1" FLAT OR BEVELED WOOD AND METAL DOORS TEMPLATES |
| 76020195 | J310, J353 WITH 5-1/2" CENTERS FACE PLATE 1" FLAT OR BEVELED RADIUS CORNERS WOOD AND METAL DOORS TEMPLATES |
| 76020193 | J310, J353 WITH 5-1/2" CENTERS FACE PLATE 1-1/8" FLAT OR BEVELED WOOD AND METAL DOORS TEMPLATES |
| 76019006 |
5703 STRIKE WOOD JAMB |
| 76019005 |
5705 Strike |
|
Installation Instructions |
|
| 76019635 | J300 INTERCONNECTED LOCKSET INSTALLATION INSTRUCTIONS |
|
|
|
| 5102W | 5102 T STRIKE WOOD TEMPLATES |
| 5201W | 5201 FULL LIP SQUARE CORNER STRIKE WOOD TEMPLATE |
