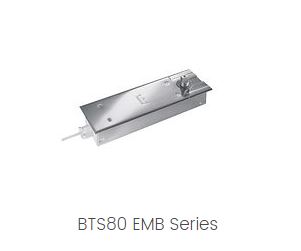

| BTS80 EMB Series Door Closer Floor-Concealed Door Closer with Electromagnetic Hold Open |
|
Click on the Template ID to open the template you wish to view. For installation instructions, click on the drawing number you wish to open.
TEMPLATES/TECHNICAL DRAWINGS
| Template ID |
Description |
| BTS-57 | BTS80 EMB C Package 1-1/2" Offset Hung Single Acting |
| BTS-58 | BTS80 EMB D Package 3/4" Offset Hung Single-Acting |
| BTS-58 | BTS80 EMB E Package 20-minute Rated 3/4" Offset Hung Single-Acting |
| BTS-58 | BTS80 EMB F Package 3-hour Rated 3/4" Offset Hung Single-Acting |
| BTS-62 | BTS80 EMB G Package Aluminum Door and Frame Center Hung Single-Acting |
| BTS-62 | BTS80 EMB H Package Wood or Steel Door and Frame Center Hung Single-Acting |
| BTS-68 | BTS80 EMB I Package (Pull Side Only) Independent Hung Door Hung with Hinges |
| BTS-82 | BTS80 EMB IF Package Independent Hung 3-hour Rated Steel Doors with Hinges and Surface Applied Track |
|
Installation Instructions |
|
| 08059412 | BTS80 EMB Series C Package 1-1/2" Offset Hung Single-Acting Installation Instructions |
| 08059411 | BTS80 EMB Series E Package 20-minute Rated 3/4" Offset Hung Single-Acting Installation Instructions |
| 08059411 | BTS80 EMB Series E Package 20-minute Rated 3/4" Offset Hung Single-Acting Installation Instructions |
| 08059411 | BTS80 EMB Series F Package 3-hour Rated 3/4" Offset Hung Single-Acting Installation Instructions |
| 08059428 | BTS80 EMB Series G Package Aluminum Door and Frame Center Hung Single-Acting Installation Instructions |
| 08059429 | BTS80 EMB Series H Package Wood or Steel Door and Frame Center Hung Single-Acting Installation Instructions |
| 08064283 | BTS80 EMB Series I Package (Pull Side Only) Independent Hung Door Hung with Hinges Installation Instructions |
| Drawing ID |
Description |
| BTS-80 | BTS Fixing Instructions |
| 08076347 | BTS80 Series SC-1 Sealing Compound Instructions |
| 08280640 | BTS80 Series Terrazo Pan 1-1/2" Offset Instructions |
| BTS-85 | BTS80 Series Terrazo Pan 3/4" Offset Instructions |
| BTS-86 | BTS80 Series Terrazo Pan Center Hung Instructions |
| 00700286 | BTS Applications & Accessories |
