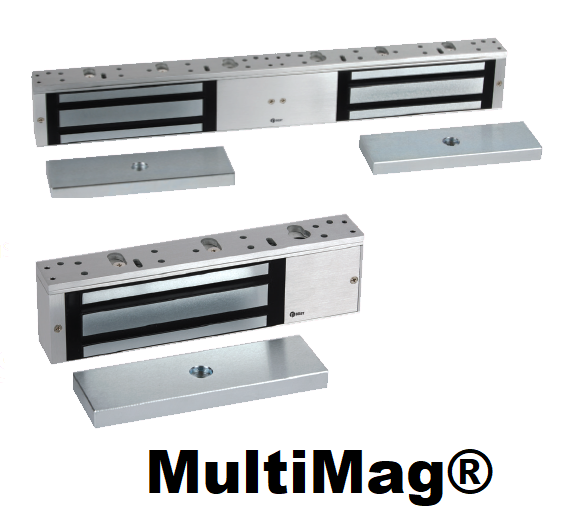

MultiMag® TEMPLATES AND INSTRUCTIONS |
 |
BML-8310 (For Single Outswinging Doors)
BML-8310SCS (For Single Outswinging Doors with Security Condition Sensor)
BML-8310DSS (For Single Outswinging Doors with Door Status Sensor)
BML-8310DSSSCS (For Single Outswinging Doors with Door Status Sensor and Security Condition Sensor)
BML-8320 (For Double Outswinging Doors)
BML-8320SCS (For Double Outswinging Doors with Security Condition Sensor)
BML-8320DSS (For Double Outswinging Doors with Door Status Sensor)
BML-8320DSSSCS (For Double Outswinging Doors with Door Status Sensor and Security Condition Sensor)
Templates
Click on the blue drawing numbers below to download the installation instructions.
| Drawing Number | Description | Rev | Last Updated |
| A89086 | Template for BML-8310 single series and Mounting Instructions | B | 2021 |
| A89087 | Template for BML-8320 double door and Mounting Instructions | B | 2021 |
Installation Instructions
| Drawing Number | Description | Rev | Last Updated |
| A89085 | BML-8310 & BML-8320 Electromagnetic Locks | B | 2021 |
| A89088 | BML-8310 & BML-8320 End User Care and Maintenance Guide | B | 2021 |
